Module-Video C3 (Standard) Connector End View (D3859C)

Harness-Family: Console_Center

Color: NA

Gender: FEMALE

Part Number: 1823896-2

Part Description: Not Available

Connector No: D3859C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

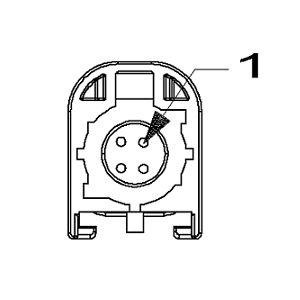

Fig 1: Module-Video C3 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Video C3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X914

GY/YE

VIDEO LVDS DATA 1 (+)

N/A

X913

GY/VT

VIDEO LVDS DATA 1 (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
