Module-Video Screen-Seatback Left C1 (Standard) Connector End View (D2373A)

Harness-Family: Video_Screen_Jumper

Color: NA

Gender: FEMALE

Part Number: 1823896-2

Part Description: Not Available

Connector No: D2373A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Video Screen-Seatback Left C1 Connector End View (Standard)

Courtesy of CHRYSLER

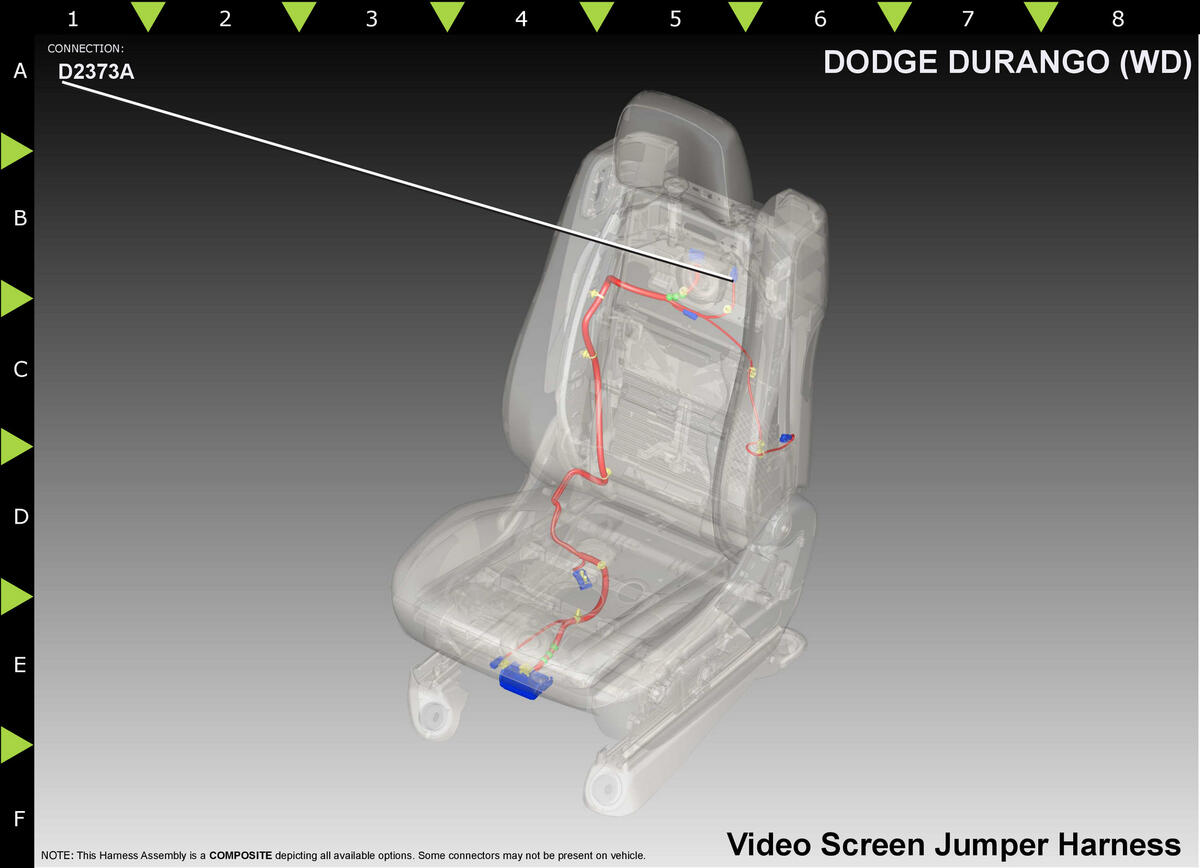

Fig 2: Module-Video Screen-Seatback Left C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X912

GY/OG

VIDEO LVDS DATA 0 (+)

N/A

X911

GY/BN

VIDEO LVDS DATA 0 (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
