Module-Video Screen-Seatback Left C2 (Standard) Connector End View (D2373B)

Harness-Family: Audio_Video

Color: BLACK

Gender: FEMALE

Part Number: TCX3413

Part Description: Not Available

Connector No: D2373B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Video Screen-Seatback Left C2 Connector End View (Standard)

Courtesy of CHRYSLER

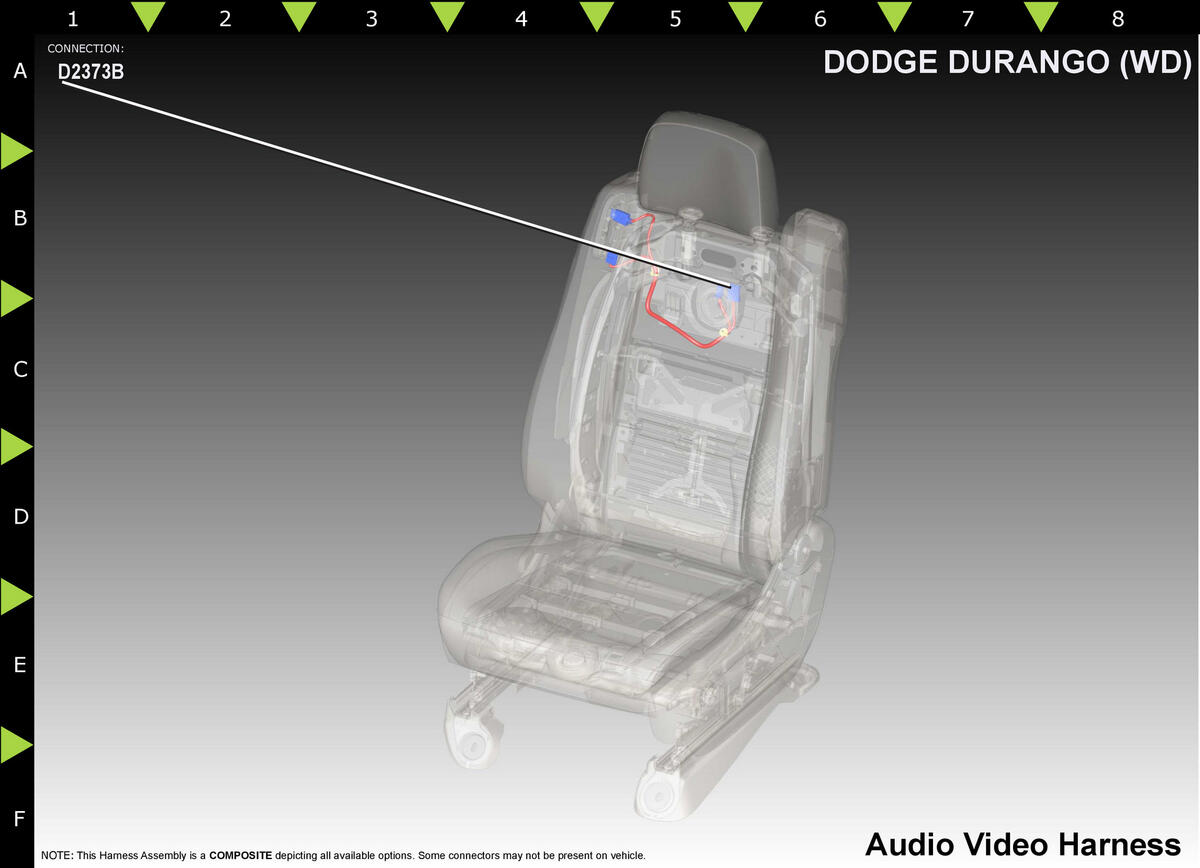

Fig 2: Module-Video Screen-Seatback Left C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J10

0.35

HDMI CABLE

N/A

⁽¹⁾	Pins not listed are not used for this connector
