Module-Video Screen-Seatback Right C1 (Standard) Connector End View (D2374A)

Harness-Family: Video_Screen_Jumper

Color: BORDEAUX

Gender: FEMALE

Part Number: 1823896-4

Part Description: Not Available

Connector No: D2374A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Video Screen-Seatback Right C1 Connector End View (Standard)

Courtesy of CHRYSLER

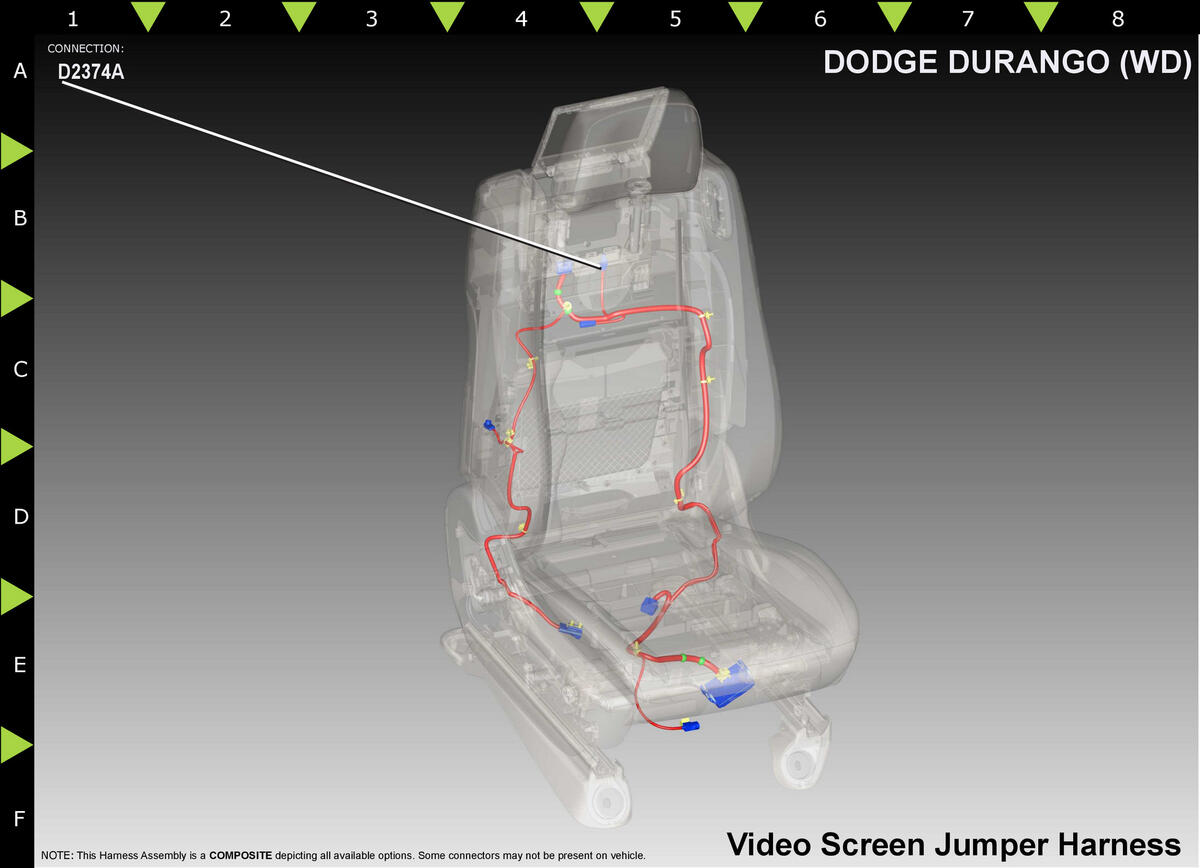

Fig 2: Module-Video Screen-Seatback Right C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X914

GY/YE

VIDEO LVDS DATA 1 (+)

N/A

X913

GY/VT

VIDEO LVDS DATA 1 (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
