Module-Video Screen-Seatback Right C2 (Standard) Connector End View (D2374B)

Harness-Family: Audio_Video

Color: BLACK

Gender: FEMALE

Part Number: TCX3413

Part Description: Not Available

Connector No: D2374B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

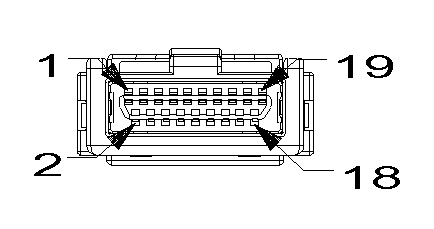

Fig 1: Module-Video Screen-Seatback Right C2 Connector End View (Standard)
GCWD1006502Courtesy of CHRYSLER

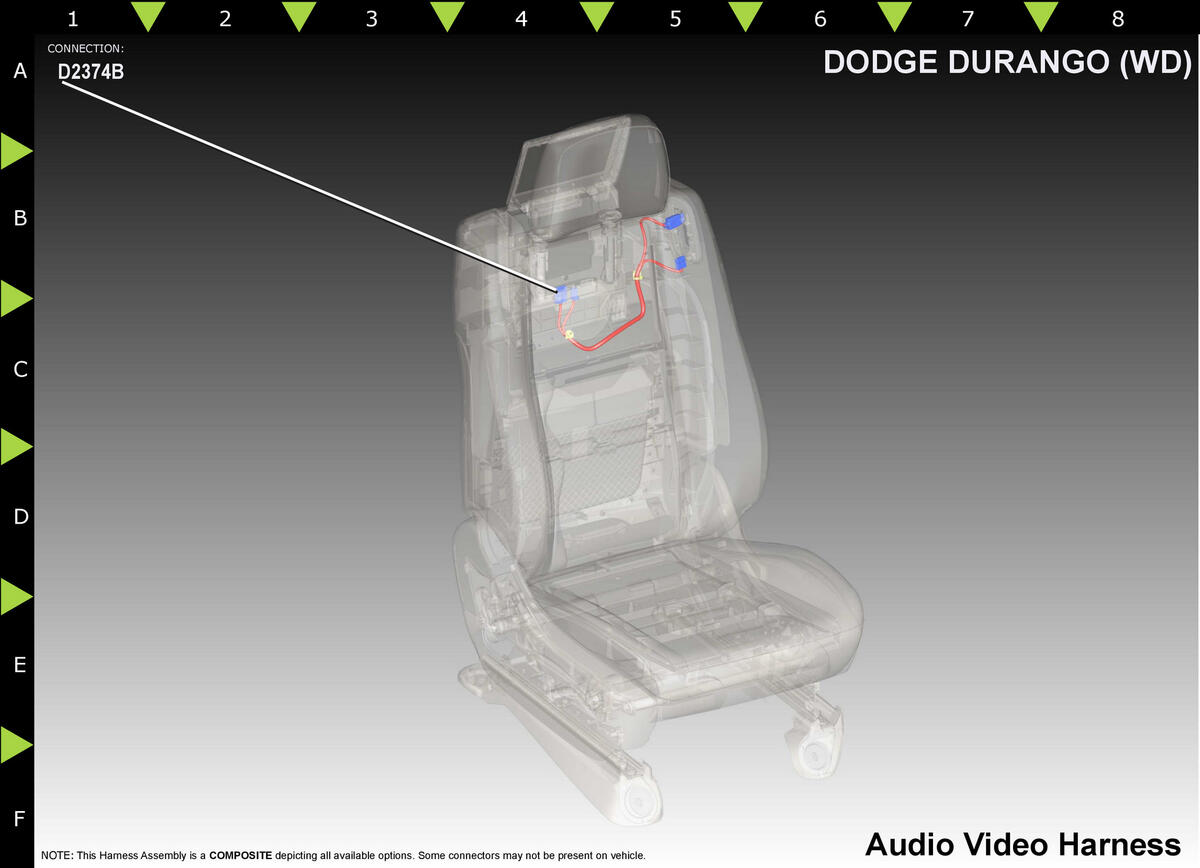

Fig 2: Module-Video Screen-Seatback Right C2 Component Location (Standard)
GCWD1260119Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 J10 BK 0.35 HDMI CABLE N/A
(1) Pins not listed are not used for this connector
