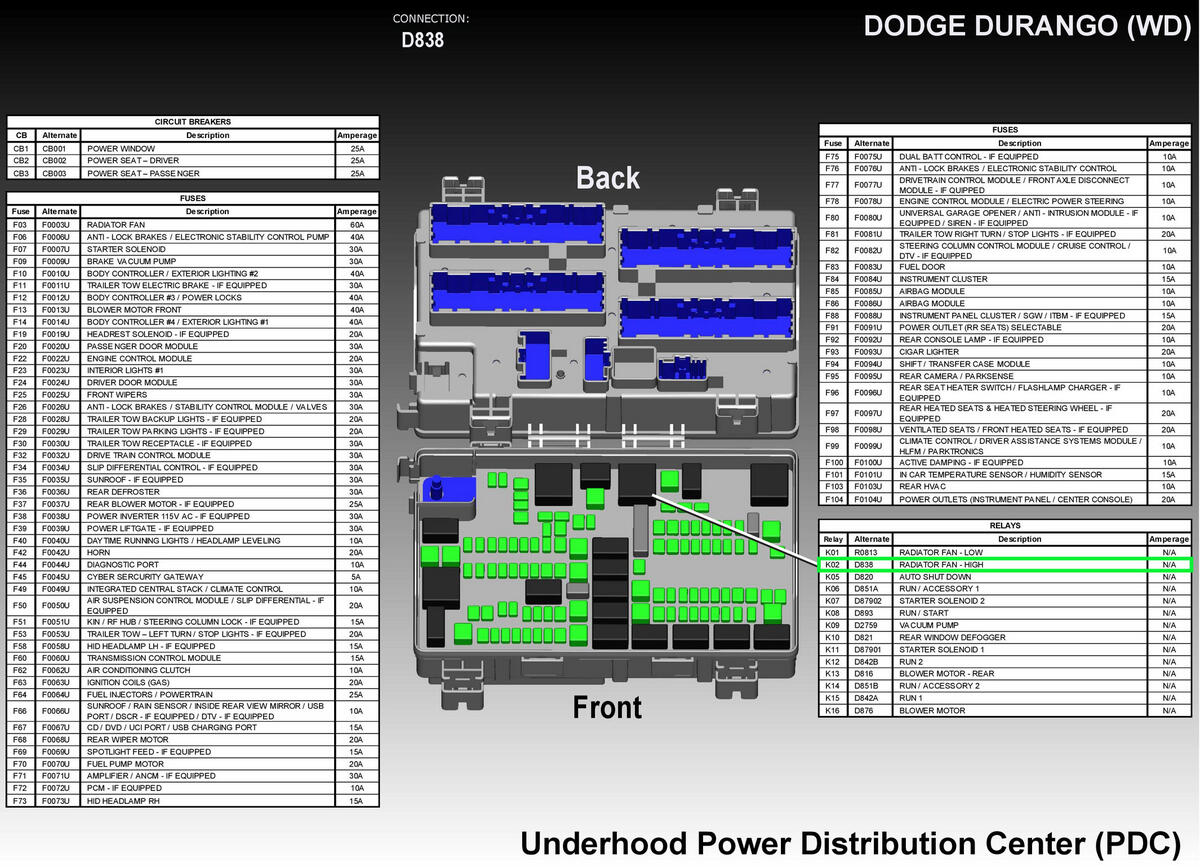

Relay-Radiator Fan-High (Standard) Connector End View (D838)
Harness-Family: PDC_Underhood
Color: NA
Gender: MALE
Part Number: Relay_Mini
Part Description: Not Available
Connector No: D838
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 85 | N112 | INTERNAL | NA | RAD FAN RELAY CONTROL | N/A | ||
| 87 | N43 | INTERNAL | NA | RAD FAN HIGH | N/A | ||
|
|||||||
