Relay-Radiator Fan-Low (Standard) Connector End View (R0813)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Mini

Part Description: Not Available

Connector No: R0813

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

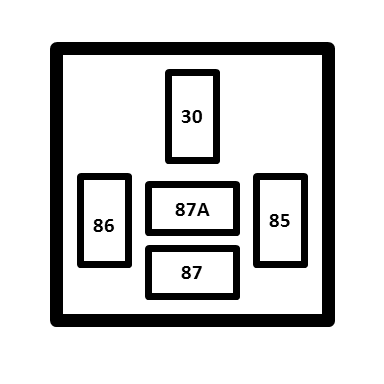

Fig 1: Relay-Radiator Fan-Low Connector End View (Standard)
GCWD1006348Courtesy of CHRYSLER

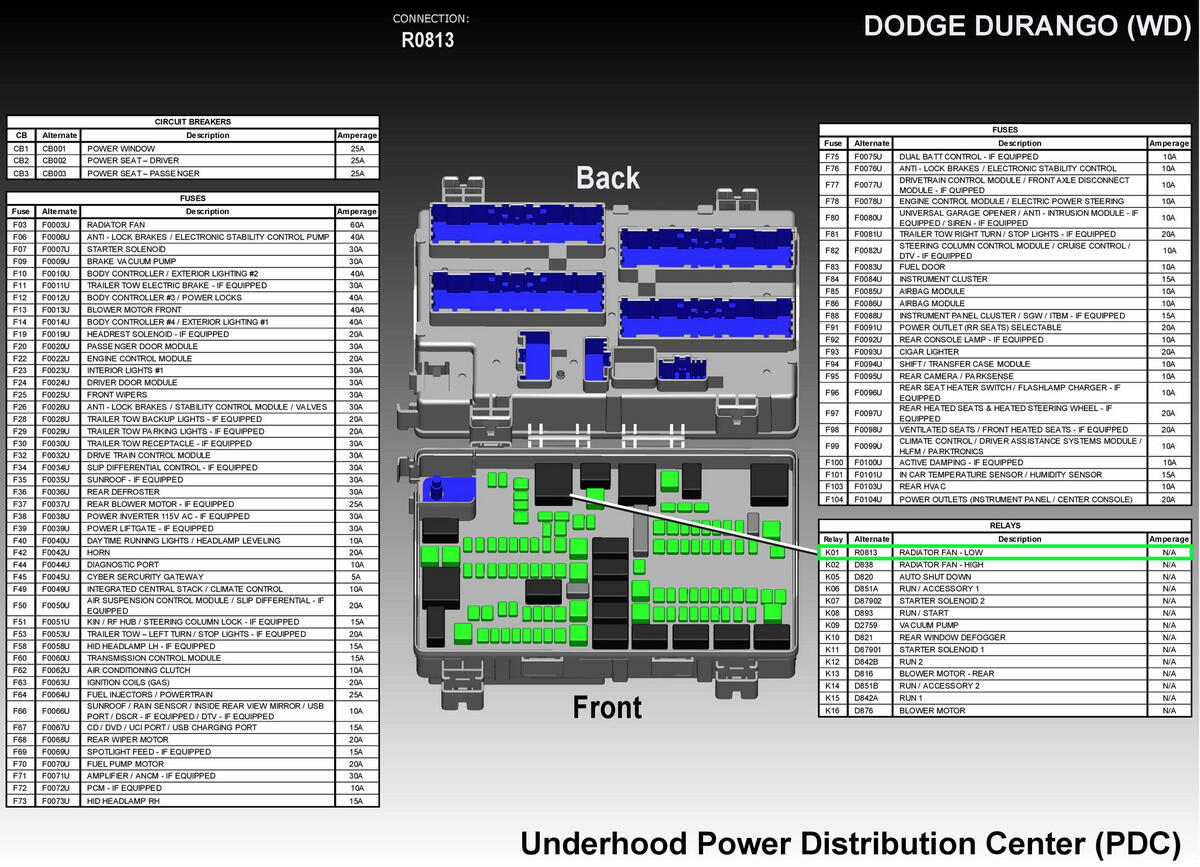

Fig 2: Relay-Radiator Fan-Low Component Location (Standard)
GCWD1260410Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
85 N201 INTERNAL NA LOW SPEED RAD FAN CONTROL N/A
87 N42 INTERNAL NA RAD FAN LOW N/A
(1) Pins not listed are not used for this connector
