Switch-Memory Set (Standard) Connector End View (D2261A)

Harness-Family: Door_Driver_2

Color: BLUE

Gender: FEMALE

Part Number: 7129-1963-90

Part Description: Not Available

Connector No: D2261A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

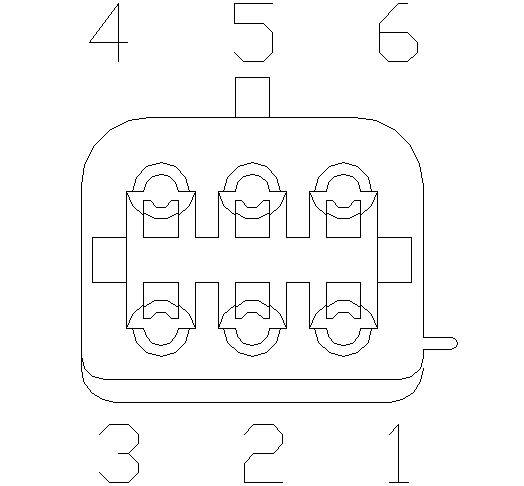

Fig 1: Switch-Memory Set Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Memory Set Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G200

0.50

MEMORY SELECT SWITCH MUX

N/A

G920

0.50

MEMORY SELECT SWITCH RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
