Module-Blower Control (Standard) Connector End View (D3827A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 6098-1449

Part Description: Not Available

Connector No: D3827A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

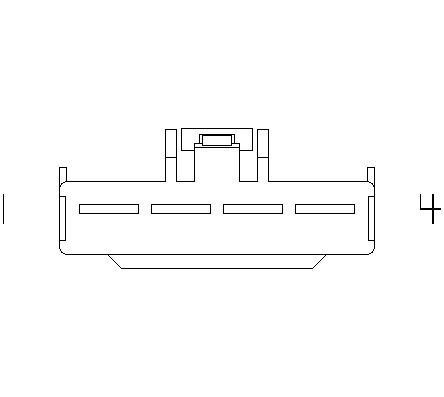

Fig 1: Module-Blower Control Connector End View (Standard)
GCWD1024388Courtesy of CHRYSLER

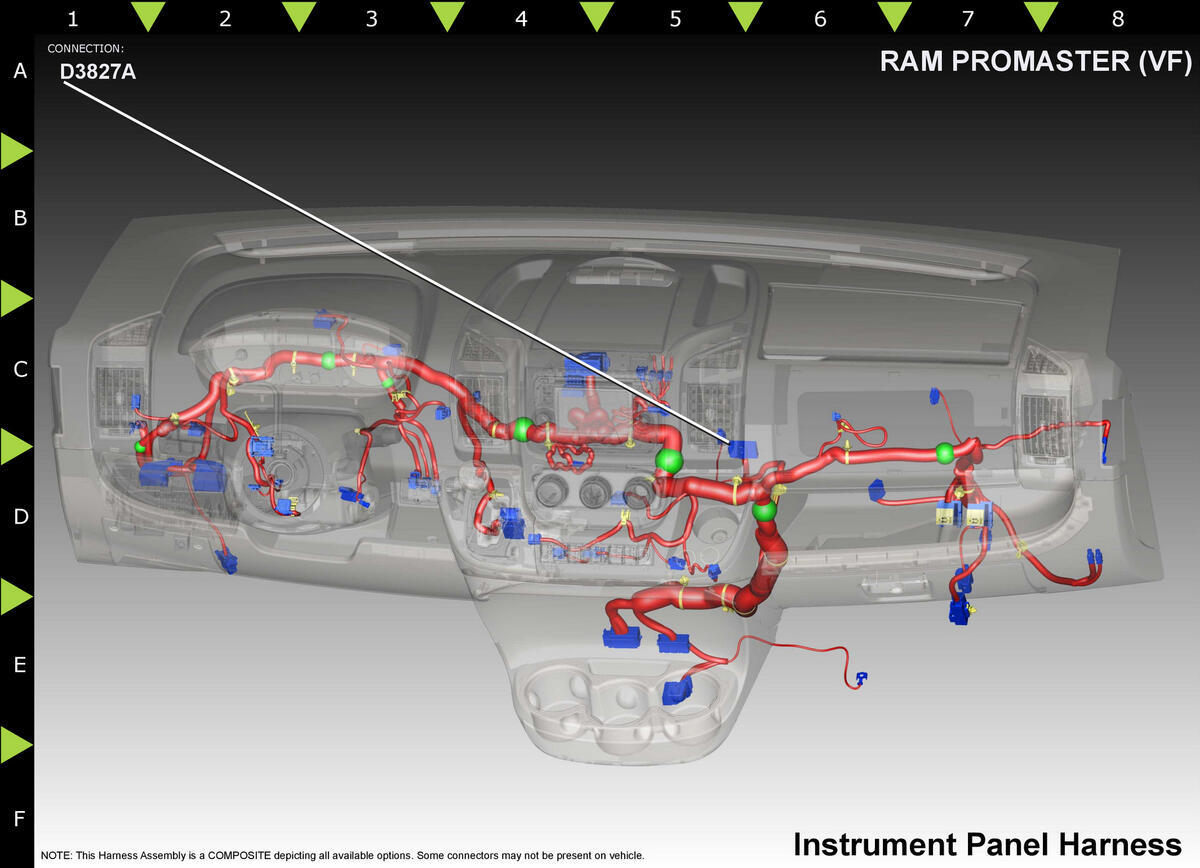

Fig 2: Module-Blower Control Component Location (Standard)
GCWD1264060Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z930 BK 6.0 GROUND STD
2 C56 BN/DB 0.5 BLOWER CONTROL STD
3 C7 RD 6.0 BLOWER MOTOR SUPPLY STD
4 C806 BK 6.0 BLOWER MOTOR CONTROL STD
(1) Pins not listed are not used for this connector
