Module-Body Control C1 (Standard) Connector End View (D2762A)

Harness-Family: Body_Left

Color: GRAY

Gender: FEMALE

Part Number: 4540345/10

Part Description: Not Available

Connector No: D2762A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

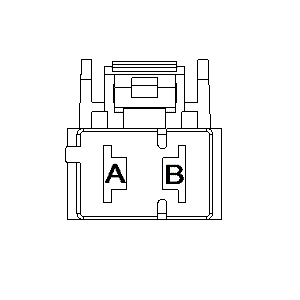

Fig 1: Module-Body Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

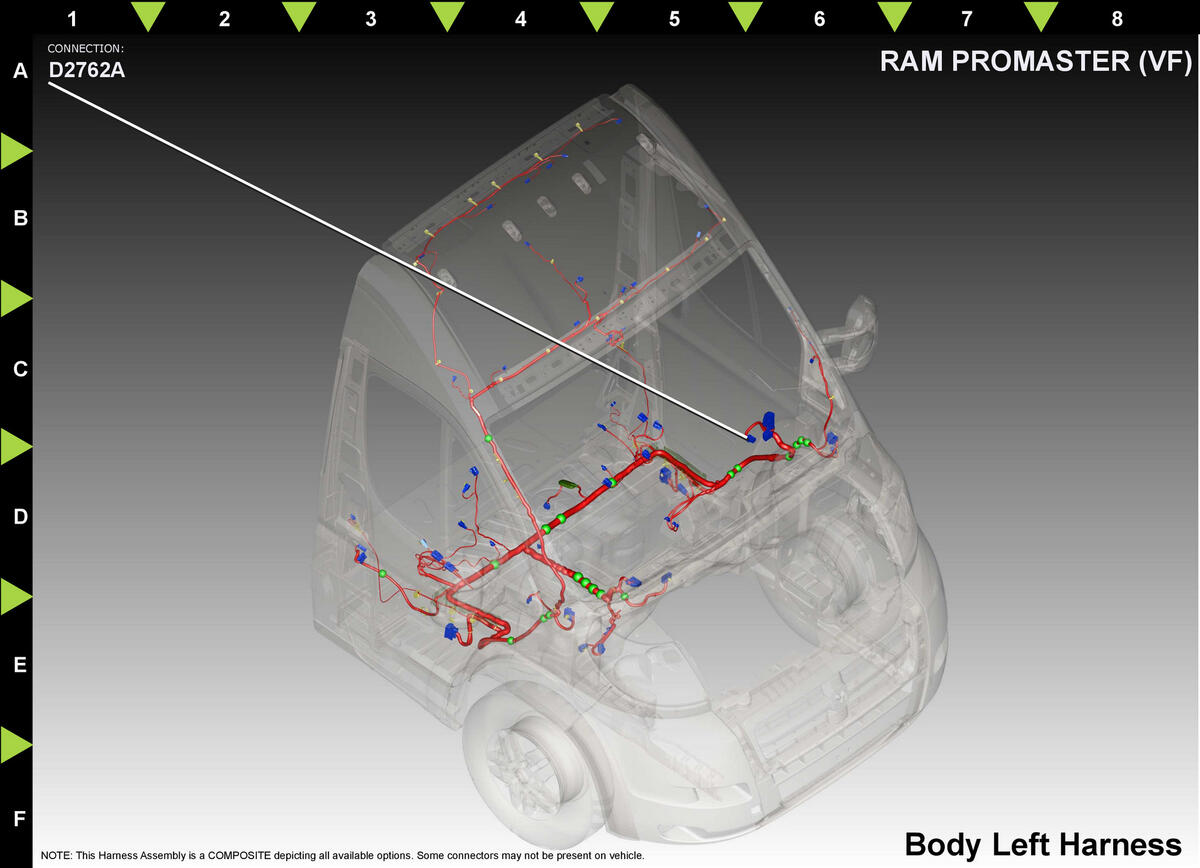

Fig 2: Module-Body Control C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A101

RD/BK

FUSED B(+)

STD

A102

FUSED B(+)

STD

⁽¹⁾	Pins not listed are not used for this connector
