Module-Powertrain Control C3 (Standard) Connector End View (D3838C)

Harness-Family: Engine_36L

Color: NA

Gender: FEMALE

Part Number: 1/20496/44

Part Description: Not Available

Connector No: D3838C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C3 Connector End View (Standard)
GCWD1013371Courtesy of CHRYSLER

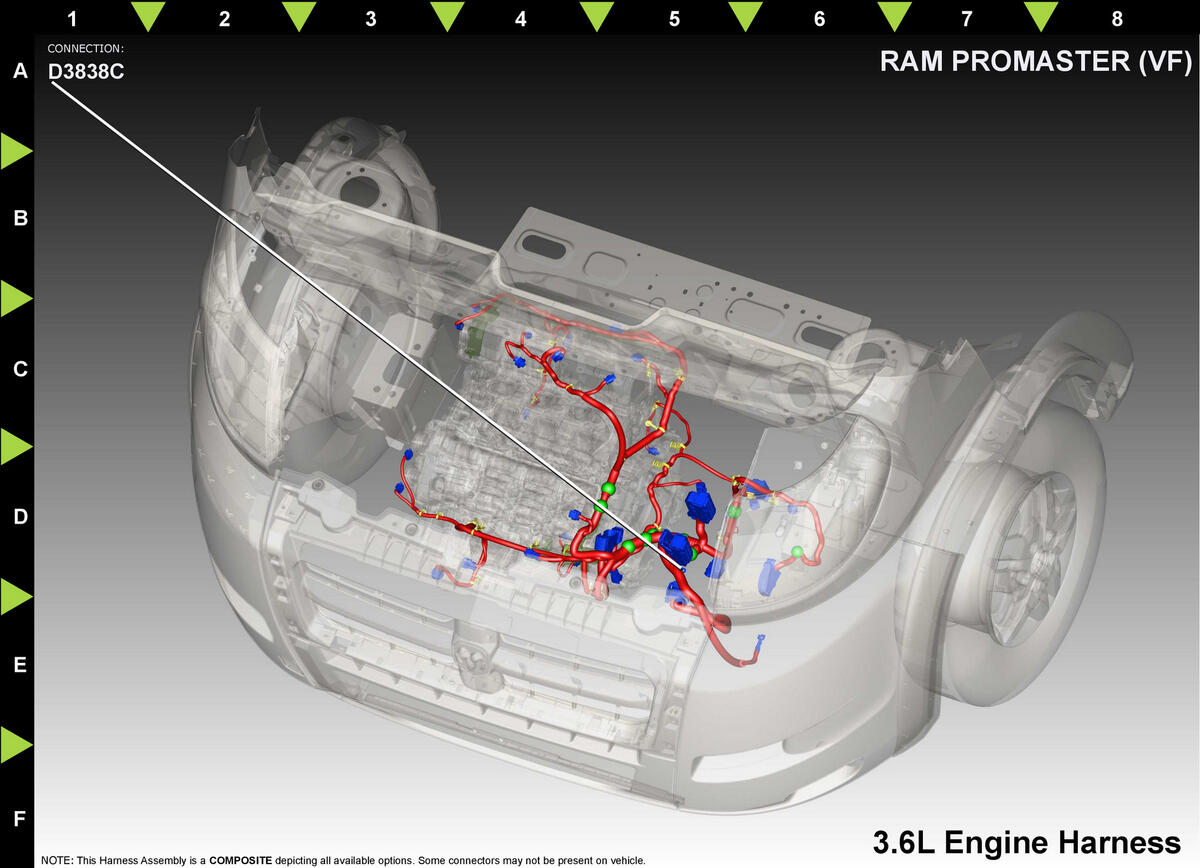

Fig 2: Module-Powertrain Control C3 Component Location (Standard)
GCWD1264225Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z909 BK 2.5 GROUND N/A
(1) Pins not listed are not used for this connector
