Relay-Rear Window Defogger (Standard) Connector End View (D821A)

Harness-Family: PDC_Rear

Color: BLACK

Gender: MALE

Part Number: 1/11299/85

Part Description: Not Available

Connector No: D821A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Rear Window Defogger Connector End View (Standard)
GCWD1006348Courtesy of CHRYSLER

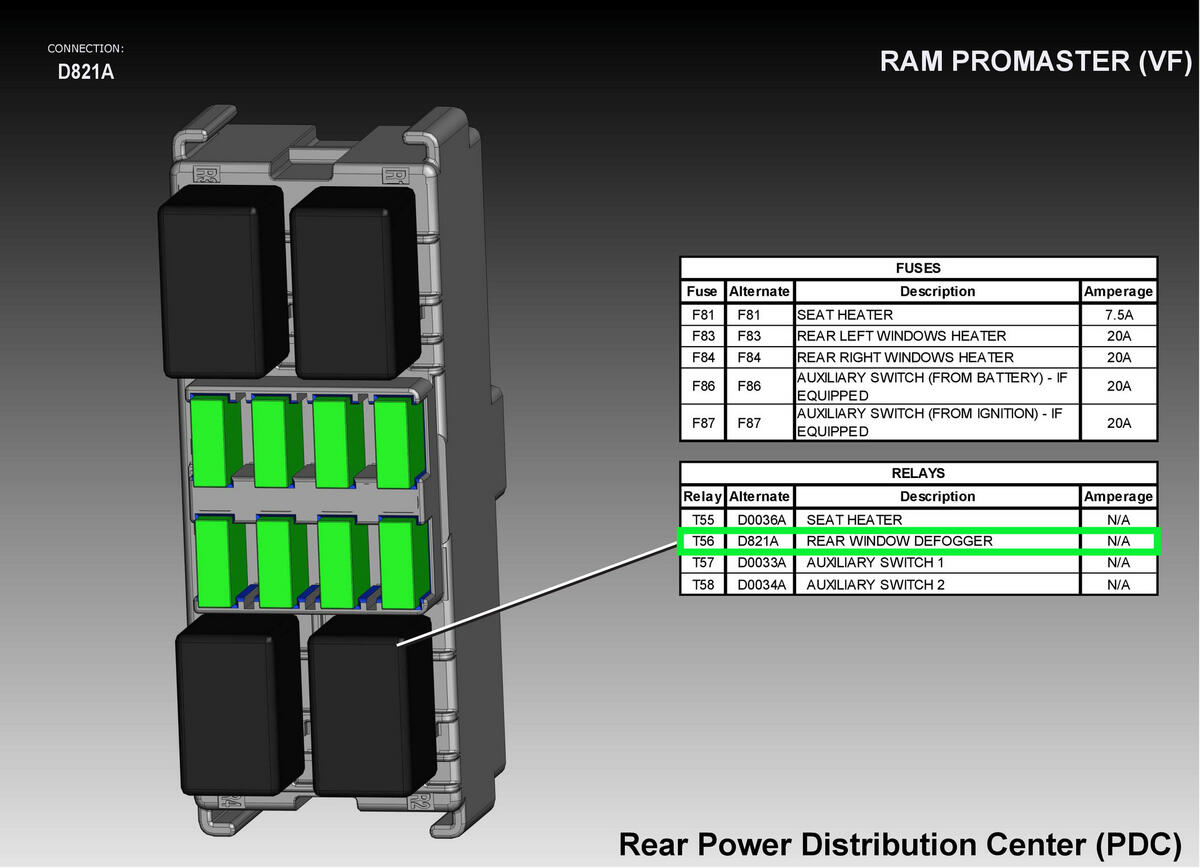

Fig 2: Relay-Rear Window Defogger Component Location (Standard)
GCWD1264009Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
30 A306 RD 4 FUSED B(+) STD
85 C115 BN/DB 0.35 DEFOGGER RELAY CONTROL STD
86 F722 GY 0.35 IGNITION SWITCH OUTPUT (RUN) STD
87 A953 RD 4 FUSED B(+) STD
(1) Pins not listed are not used for this connector
