Sensor, Pressure Control: Installation
- Install the line pressure sensor on to the valve body.

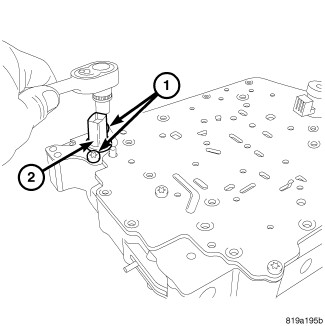

- Install the bolts (1) to the line pressure sensor and tighten to 6 N.m (50 in. lbs.).
- Connect the line pressure sensor wire harness connector.

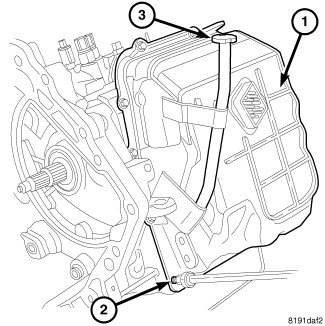

- Install the valve body oil pan, use a bead of MOPAR® ATF RTV (MS-GF41).

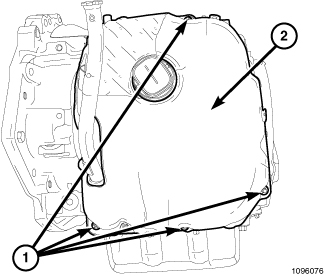

- Install the upper valve body oil pan bolts and tighten to 6 N.m (50 in. lbs.).
- Install the pressure tap at valve body oil pan and tighten to 6 N.m (50 in. lbs.).
- Lower the vehicle on a hoist.

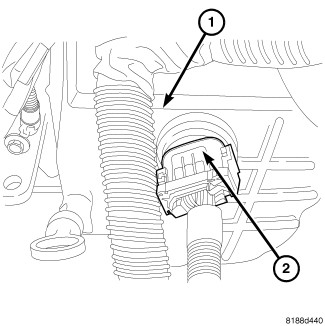

- Install the solenoid pack connector (2) at valve body oil pan.
- Raise the vehicle on the hoist.
- Install the left side inner wheel splash shield screws (1).
- Install the Front Sound Damper Cover (2) and the fasteners (1).
- Lower the vehicle.

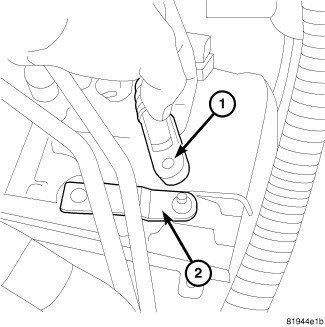

- Install shift cable (1) to manual lever (2).
- Connect the negative battery cable.
- Fill transmission and road test. Refer to FLUID, STANDARD PROCEDURE .
