Module-Vehicle System Interface C1 (VSIM) Connector End View (D2385A)

Harness-Family: IP

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6467-40

Part Description: Not Available

Connector No: D2385A

Option: VSIM

Repair Kit Part Number: Not Available

Cavity Count: null

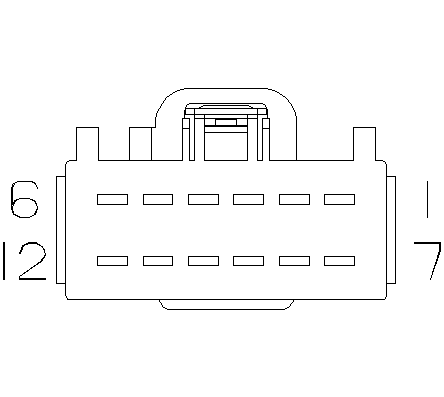

Fig 1: Module-Vehicle System Interface C1 Connector End View (VSIM)

Courtesy of CHRYSLER

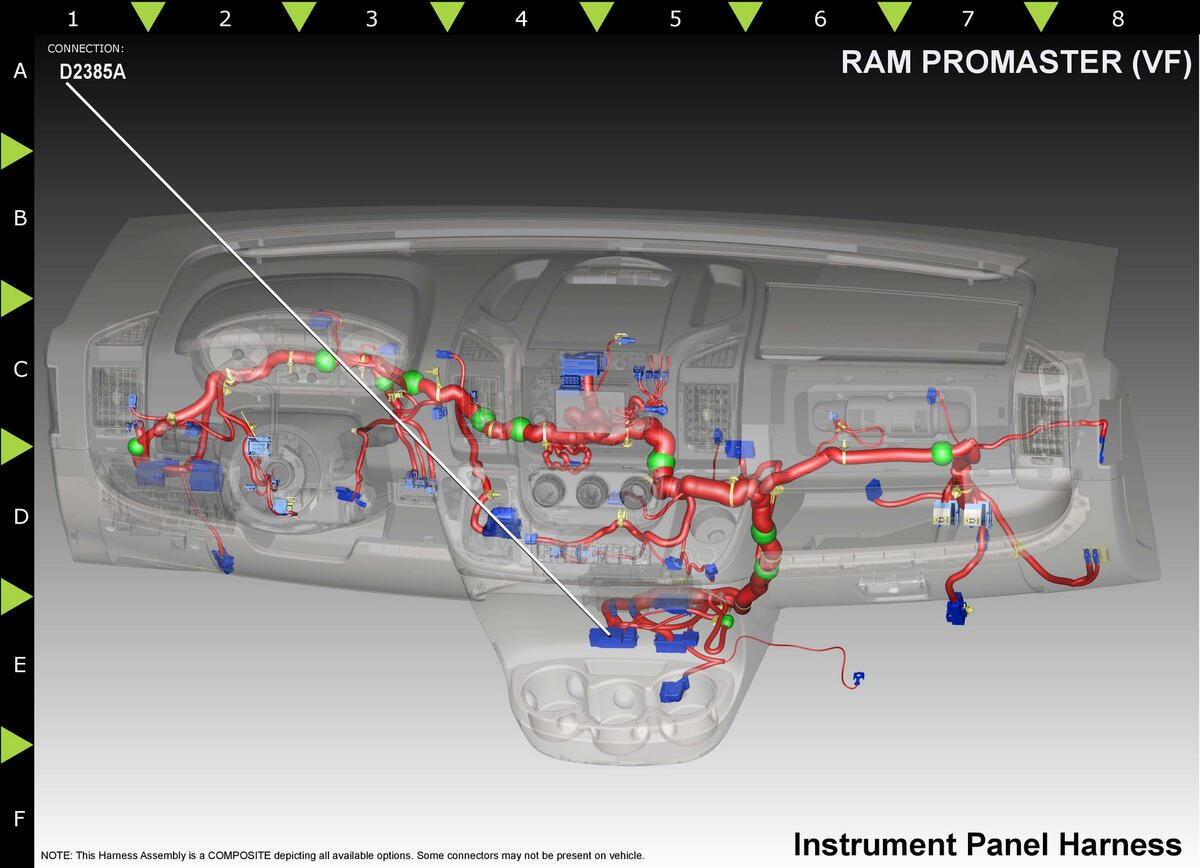

Fig 2: Module-Vehicle System Interface C1 Component Location (VSIM)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A807

RD/GN

2.5

FUSED B(+)

N/A

W720

VT/OG

0.5

UPFITTER ANY DOOR AJAR SIGNAL

N/A

W719

WH/VT

0.75

UPFITTER HAZARD INDICATOR FEED

N/A

W504

0.5

TRANSMISSION OUT OF PARK SIGNAL

N/A

Z930

1.5

GROUND

N/A

W681

BN/GY

0.75

UPFITTER RIGHT TURN SIGNAL ON

N/A

W540

BN/GN

0.5

MALFUNCTION INDICATOR SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
