Module-Vehicle System Interface C5 (VSIM) Connector End View (D2385E)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 7283-9080-90

Part Description: Not Available

Connector No: D2385E

Option: VSIM

Repair Kit Part Number: Not Available

Cavity Count: null

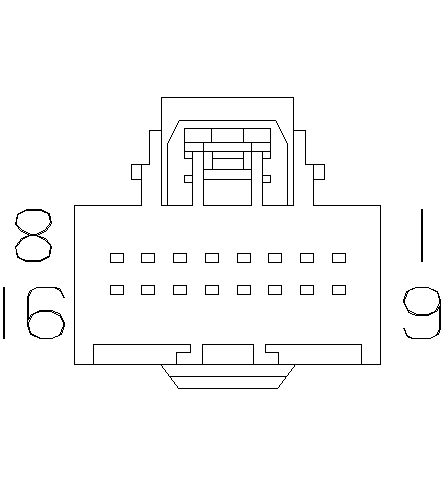

Fig 1: Module-Vehicle System Interface C5 Connector End View (VSIM)
GCWD1016842Courtesy of CHRYSLER
Fig 2: Module-Vehicle System Interface C5 Component Location (VSIM)
GCWD1264199Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 W700 YE/DB 0.5 UPFITTER TRANS PARK SIGNAL N/A
2 W701 GN/YE 0.5 UPFITTER TRANS NEUTRAL SIGNAL N/A
4 W652 DB/BN 0.5 UPFITTER A/C CLUTCH ENGAGED SIGNAL N/A
7 D45 GN 0.35 CAN C (+) N/A
8 W533 BN/DB 0.35 CAN B (+) N/A
9 W702 RD/DB 0.5 UPFITTER TRANS REVERSE SIGNAL N/A
10 W703 YE/DB 0.5 UPFITTER TRANS DRIVE SIGNAL N/A
11 W554 WH/BN 0.5 PASSENGER SEAT BELT NOT LATCHED N/A
12 W689 YE 0.5 UPFITTER A/C SELECTED N/A
15 D46 BN 0.35 CAN C (-) N/A
16 W535 DB/BN 0.5 CAN B (-) N/A
(1) Pins not listed are not used for this connector
