Module-Occupant Restraint Controller C2 (Standard) Connector End View (D3834B)

Harness-Family: Body_Left

Color: YELLOW

Gender: FEMALE

Part Number: 1/14274/01

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

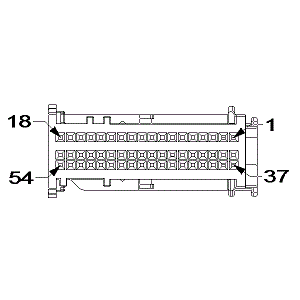

Fig 1: Module-Occupant Restraint Controller C2 Connector End View (Standard)
GCWD1012888Courtesy of CHRYSLER

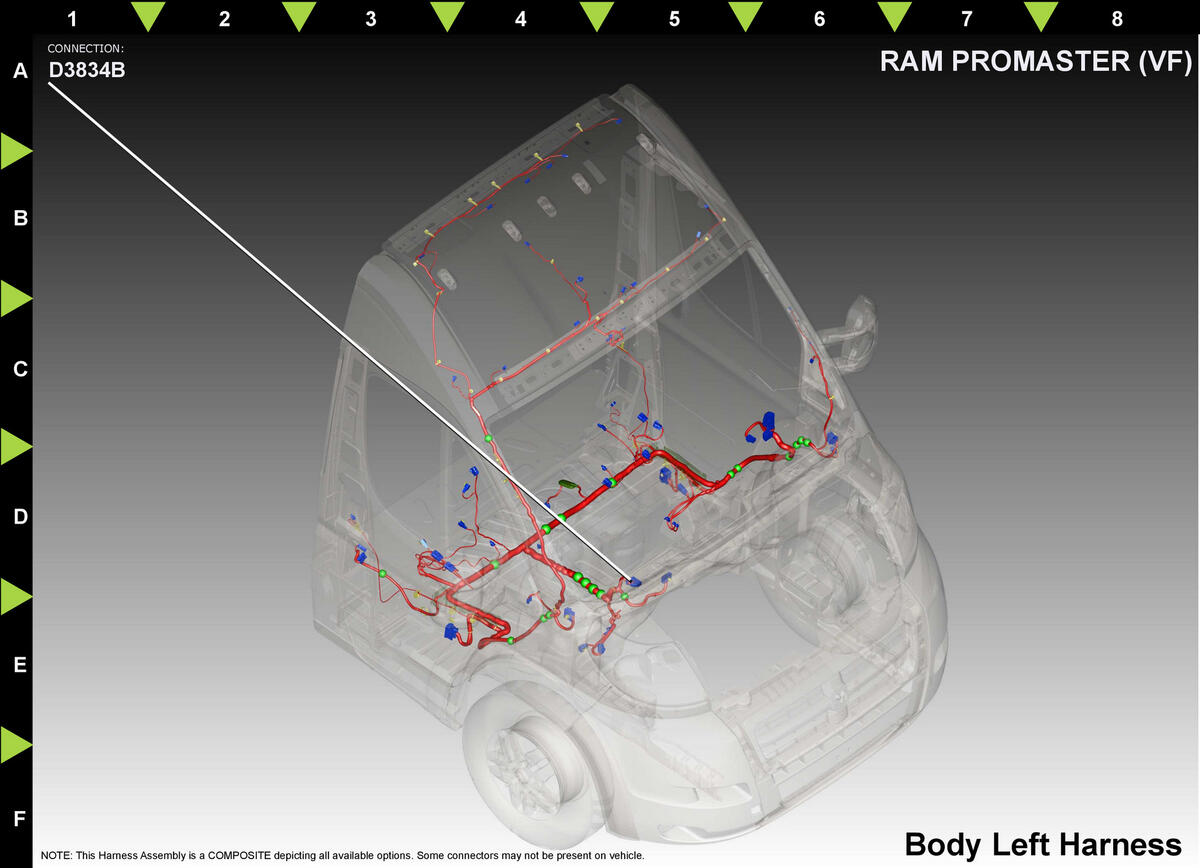

Fig 2: Module-Occupant Restraint Controller C2 Component Location (Standard)
GCWD1264077Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R7 GN/BK 0.5 LEFT SEAT THORAX SQUIB 1 LINE 1 N/A
2 R5 GN/YE 0.5 LEFT SEAT THORAX SQUIB 1 LINE 2 N/A
3 R6 OG 0.5 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
4 R8 OG/BK 0.5 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
5 R505 OG/WH 0.5 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
6 R503 DB/GN 0.5 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
7 R504 WH/DB 0.5 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
8 R506 WH/BK 0.5 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
9 R270 OG/DB 0.5 CENTER SEAT BELT TENSIONER LINE 1 N/A
10 R269 OG/WH 0.5 CENTER SEAT BELT TENSIONER LINE 2 N/A
31 R4 GN 0.5 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
32 R2 WH 0.5 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
33 R1 DB 0.5 LEFT CURTAIN SQUIB 1 LINE 2 N/A
34 R3 BN 0.5 LEFT CURTAIN SQUIB 1 LINE 1 N/A
37 P167 WH/VT 0.5 DRIVER SWIVEL SEAT SWITCH SENSE N/A
38 P168 GN/RD 0.5 PASSENGER SWIVEL SEAT SWITCH SENSE N/A
39 R53 WH/RD 0.5 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
40 R60 WH/YE 0.5 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
41 R50 WH/VT 0.5 CENTER SEAT BELT BUCKLE SWITCH SENSE N/A
42 R263 GN/YE 0.5 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
43 R281 GN/RD 0.5 CENTER SEAT OCCUPANT DETECTION SIGNAL N/A
44 R283 GN/WH 0.5 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
45 Z107 BK 0.5 GROUND N/A
46 Z107 BK 0.5 GROUND N/A
51 R13 GY/RD 0.5 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
52 R15 GY/BN 0.5 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
53 R16 GY/YE 0.5 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
54 R14 GY/WH 0.5 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
(1) Pins not listed are not used for this connector
