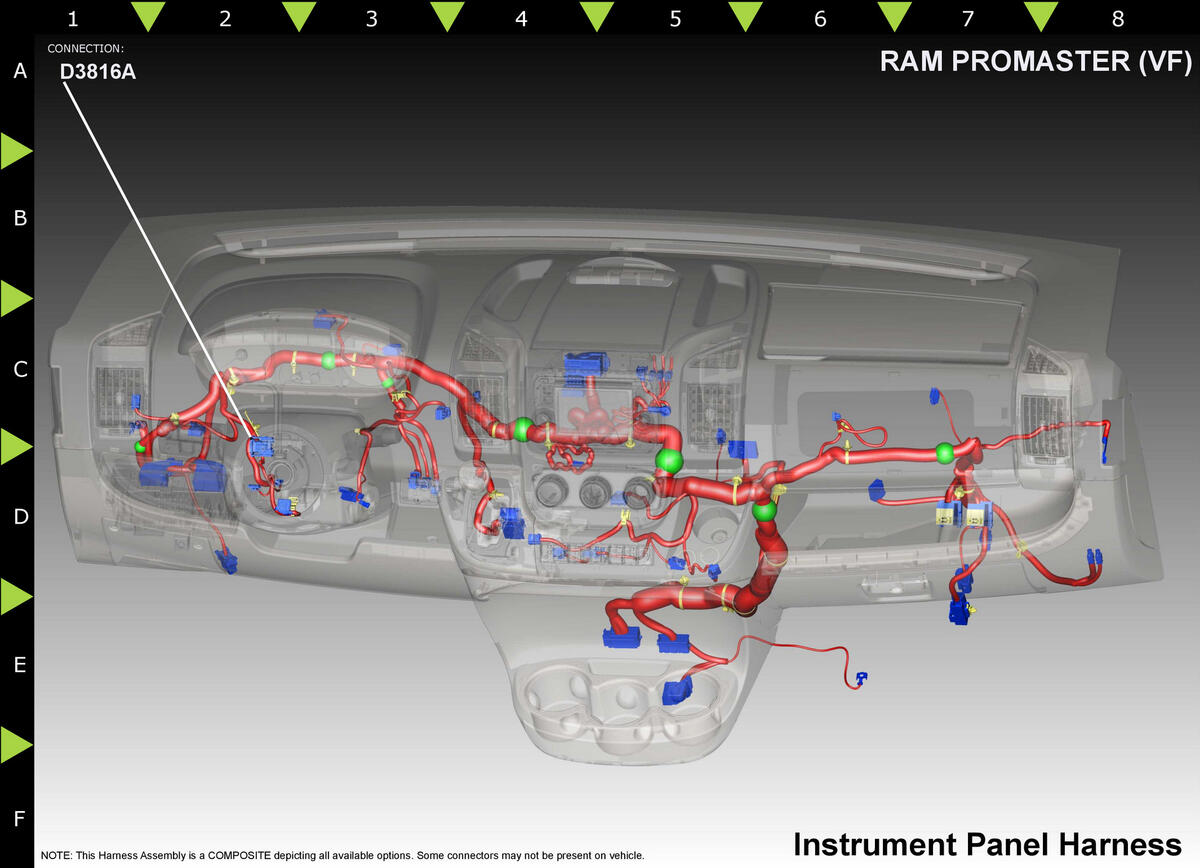

Module-Steering Control C1 (Standard) Connector End View (D3816A)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 1/08362/07
Part Description: Not Available
Connector No: D3816A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | W23 | WH/DB | 0.35 | HEADLAMP WASHER RELAY OUTPUT | STD | ||
| 2 | W8 | WH/BK | 0.35 | WIPER ON/OFF RELAY CONTROL | STD | ||
| 4 | Z930 | BK/VT | 0.35 | GROUND | STD | ||
| 5 | L12 | VT/RD | 0.35 | TURN SIGNAL INPUT MUX | STD | ||
| 6 | L37 | WH/GN | 0.35 | HIGH BEAM SWITCH SENSE | STD | ||
| 7 | L107 | YE/BK | 0.35 | MAIN LIGHTING SWITCH | STD | ||
| 11 | W528 | GN/GY | 0.35 | TRIP RESET SIGNAL | STD | ||
| 12 | W8 | WH/RD | 0.35 | WIPER ON/OFF RELAY CONTROL | STD | ||
|
|||||||
