Module-Vehicle System Interface C2 (VSIM) Connector End View (D2385B)

Harness-Family: VSIM Jumper

Color: BLACK

Gender: FEMALE

Part Number: 1/11364/97

Part Description: Not Available

Connector No: D2385B

Option: VSIM

Repair Kit Part Number: Not Available

Cavity Count: null

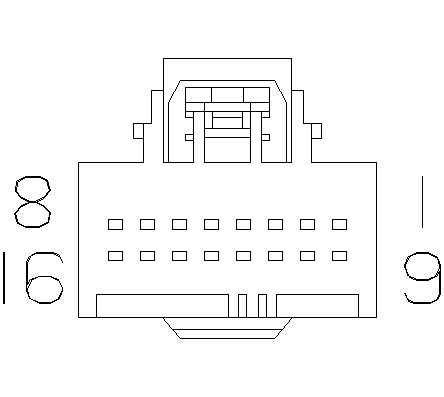

Fig 1: Module-Vehicle System Interface C2 Connector End View (VSIM)
GCWD1264145Courtesy of CHRYSLER

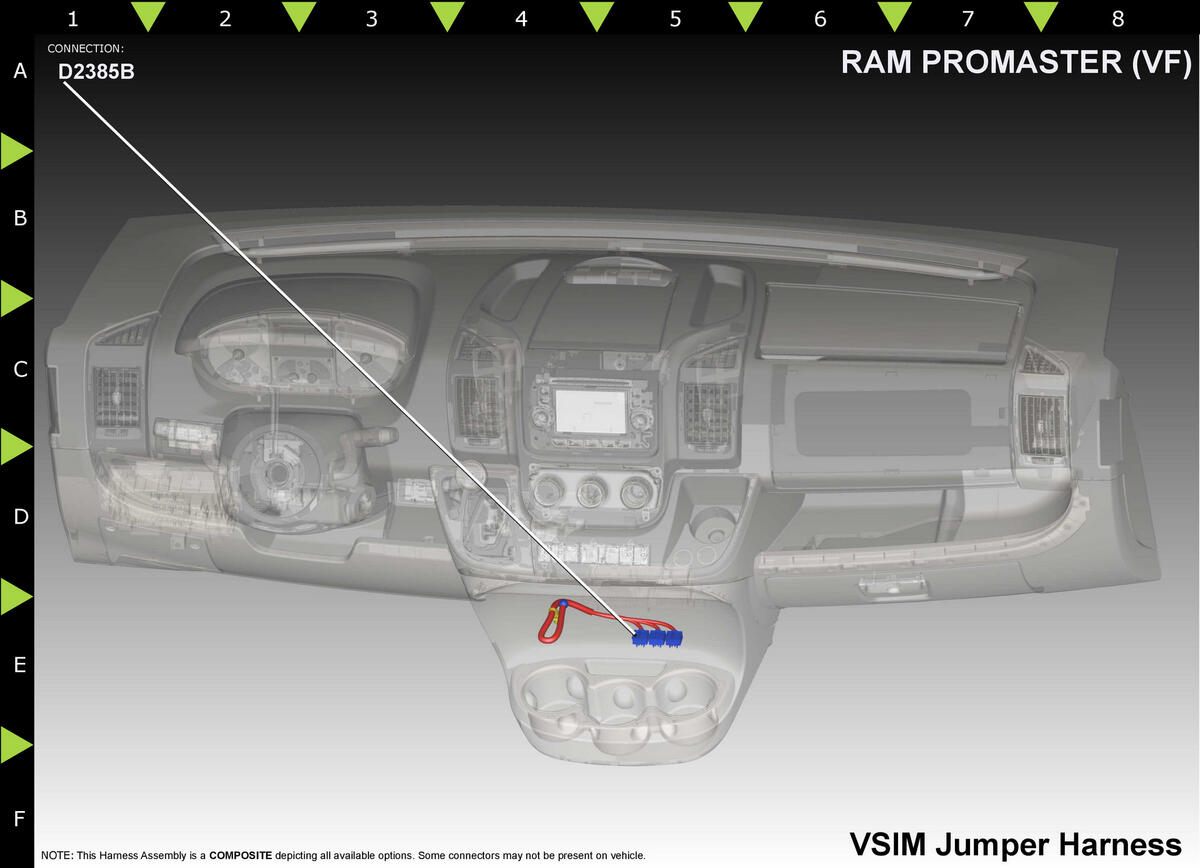

Fig 2: Module-Vehicle System Interface C2 Component Location (VSIM)
GCWD1263939Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 W505 GN 0.35 SIREN SIGNAL N/A
3 W682 BN/GN 0.35 UPFITTER LEFT TURN SIGNAL ON N/A
4 W684 VT/OG 0.35 UPFITTER HIGH BEAM ACTIVE N/A
5 W737 RD 0.35 UPFITTER IGNITION OFF N/A
6 W710 VT 0.35 UPFITTER SEAT BELT NOT LATCHED N/A
8 W733 VT/GY 0.35 UPFITTER VOLTAGE GAUGE N/A
9 W685 VT 0.35 UPFITTER FRONT AIRBAG DEPLOYED N/A
11 W726 VT/DB 0.35 UPFITTER BRAKE PEDAL SIGNAL N/A
13 W736 RD/YE 0.35 UPFITTER IGNITION RUN N/A
14 W538 DB/LG 0.35 FUEL LEVEL STATUS SIGNAL N/A
15 W744 BN/WH 0.35 UPFITTER ENGINE SPEED SIGNAL N/A
16 W524 BN 0.35 VEHICLE SPEED SIGNAL N/A
(1) Pins not listed are not used for this connector
