Module-Vehicle System Interface C4 (VSIM) Connector End View (D2385D)

Harness-Family: VSIM Jumper

Color: GREEN

Gender: FEMALE

Part Number: 1/13363/93

Part Description: Not Available

Connector No: D2385D

Option: VSIM

Repair Kit Part Number: Not Available

Cavity Count: null

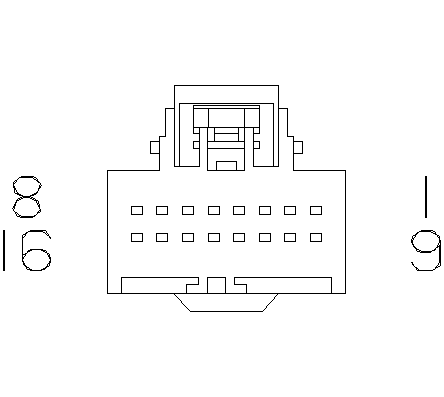

Fig 1: Module-Vehicle System Interface C4 Connector End View (VSIM)

Courtesy of CHRYSLER

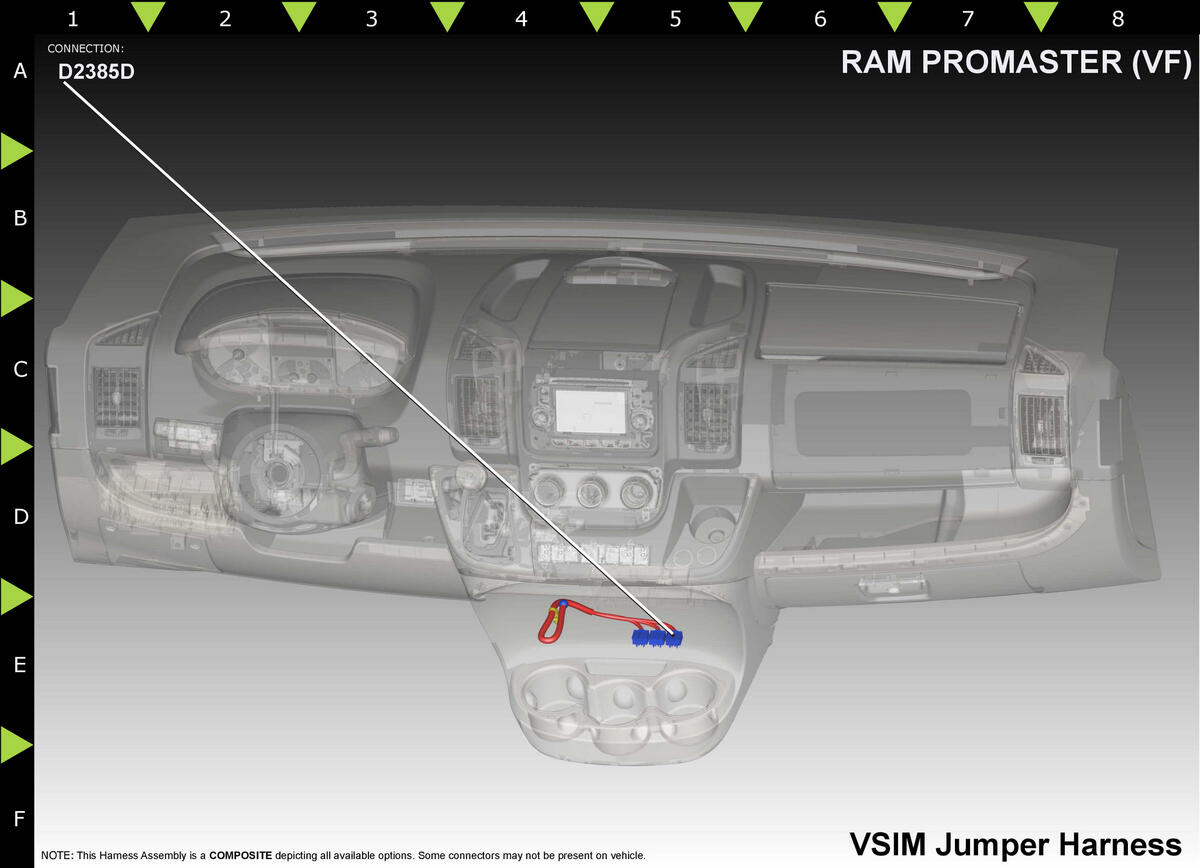

Fig 2: Module-Vehicle System Interface C4 Component Location (VSIM)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

W509

WH/BN

0.35

REAR BULB OUT DETECTION SIGNAL

N/A

W683

DB/GY

0.35

UPFITTER LOW BEAM ACTIVE

N/A

W656

0.35

UPFITTER REAR A/C REQUEST SIGNAL

N/A

W546

GN/YE

0.35

SEPARATED REAR TAIL LAMPS

N/A

W522

DB/YE

0.35

ENGINE RUNNING STATUS SIGNAL

N/A

W699

WH/GN

0.35

UPFITTER PARK LAMP ON

N/A

⁽¹⁾	Pins not listed are not used for this connector
