Sensor, Speed, Input: Installation

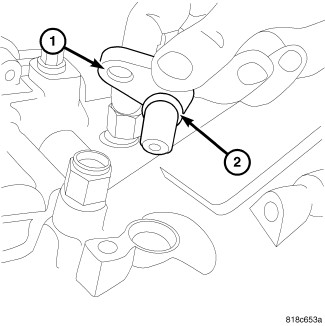

GC0122779Courtesy of CHRYSLER GROUP, LLC
  1. Install a new O-ring (2).

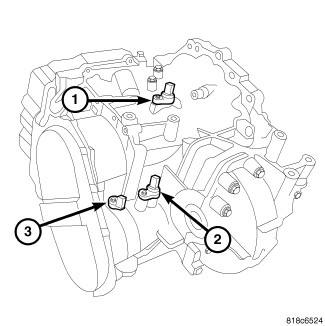

    GC0122503Courtesy of CHRYSLER GROUP, LLC
  2. Install input speed sensor (1) into case.
    GC0122779Courtesy of CHRYSLER GROUP, LLC
  3. Install bolt at input speed sensor and tighten to 12 N.m (105 in. lbs.).

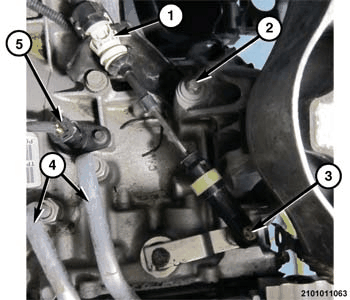

    GC0160252Courtesy of CHRYSLER GROUP, LLC
  4. Engage electrical connector (5).
  5. Close the hood.
  6. Connect the negative battery cable.
