Solenoid, Variable Valve Timing: Installation: Right
- Install the Variable Valve Timing (VVT) solenoid seals (1). The seals can be reused if not damaged.
- Refer to the markings made at disassembly and install the intake VVT solenoid (2) and the exhaust VVT solenoid (4) in their original locations.
- Install and securely tighten the VVT solenoid mounting bolts (3).
- Connect the wiring harness connector (1) to the VVT solenoid.

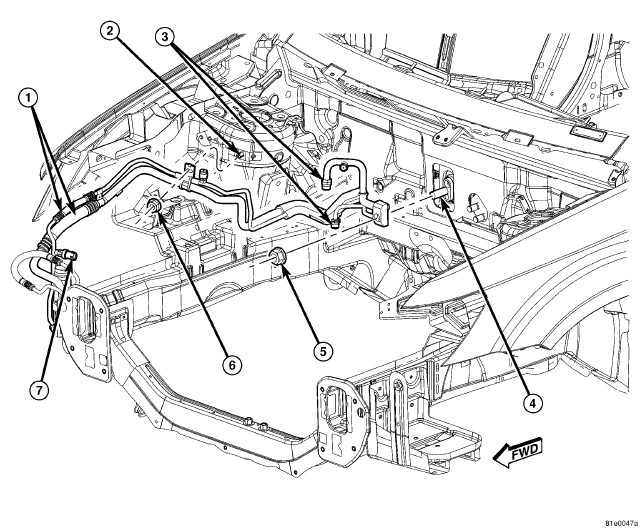

- Install the upper A/C liquid and suction line assembly (1). Refer to LINE, A/C SUCTION, INSTALLATION .
- Install the resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
