Automatic Transmission (Service Information): Disassembly

Courtesy of CHRYSLER GROUP, LLC

Remove the speed sensors (1, 2 and 3).

Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1) at the oil filter pan (2).
Remove the oil filter pan (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (1) at the oil filter (2).
Remove the oil filter (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the oil filter seal (1) at the case.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Keep the Front Sound Dampener Cover if replacing the unit.
If equipped, remove the fasteners (1) and the Front Sound Dampener Cover (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Keep the Top Sound Dampener Cover if replacing the unit.
If equipped, remove the Top Sound Damper Cover (1).

Courtesy of CHRYSLER GROUP, LLC
Remove bolts (2) at the valve body oil pan (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the pressure tap plug (2) at valve body pan.
Remove the valve body pan.

Courtesy of CHRYSLER GROUP, LLC

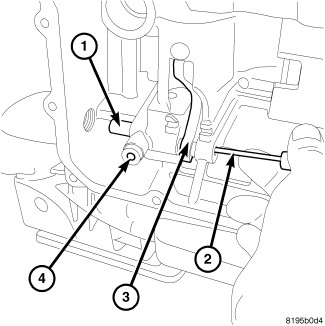

Remove the electrical connector (1) at the range sensor (4).
Remove the bolt (3) holding the detent spring.
Remove the detent spring (2).

Courtesy of CHRYSLER GROUP, LLC
Remove valve body bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Remove valve body (1) from oil transfer tubes and manual valve (3) from rooster comb.

Courtesy of CHRYSLER GROUP, LLC

Remove oil transfer tubes (2) from the case.

Courtesy of CHRYSLER GROUP, LLC

1 - UD ACCUMULATOR

5 - LC ACCUMULATOR

2 - 2/4 ACCUMULATOR

6 - DC ACCUMULATOR

3 - LR ACCUMULATOR

7 - OD ACCUMULATOR

4 - 2/4 CLUTCH OIL SUPPLY SEAL

Remove all six accumulators (1, 2, 3, 5, 6 and 7) from case along with the accumulator return springs.
Remove the 2/4 clutch oil supply seal (4) from the case.
Remove the manual lever, transmission range sensor (TRS) and seal. Refer to SENSOR, TRANSMISSION RANGE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

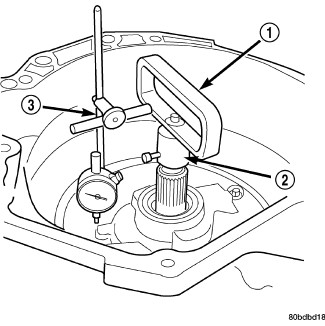

1 - END PLAY FIXTURES 8266A

2 - DIAL INDICATOR C-3339A
Measure input shaft end play. Place transaxle so input shaft is vertical. Set up (special tool #8266-7, Spline Tool, 32RH) (1, 2) and dial indicator (3). Input shaft end play should be within 0.13-0.64 mm (0.005-0.025 in.) Record indicator reading for reference upon reassembly.

Courtesy of CHRYSLER GROUP, LLC
Remove the front pump bolts (1).

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Be sure input speed sensor is removed before removing oil pump.

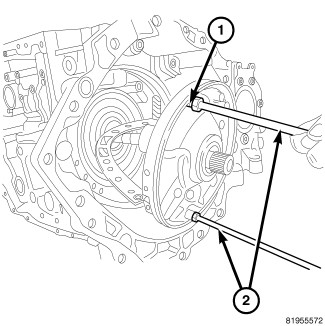

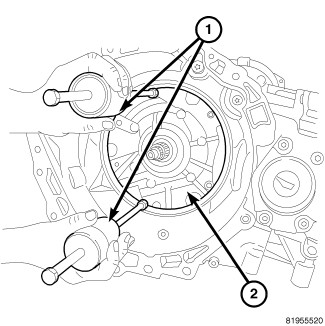

Install (special tool #C-3752, Slide Hammers)or equivalent (1) on oil pump (2).

Courtesy of CHRYSLER GROUP, LLC
Remove oil pump assembly (1).

Courtesy of CHRYSLER GROUP, LLC
Remove oil pump gasket (2).

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
If transaxle failure has occurred, the cooler bypass valve must be replaced. Do not re-use or attempt to clean valve.
Remove cooler bypass valve (2).

Courtesy of CHRYSLER GROUP, LLC

1 - #1 CAGED NEEDLE BEARING

2 - NOTE: TANGED SIDE OUT
Remove number one needle bearing (1).

Courtesy of CHRYSLER GROUP, LLC

1 - INPUT CLUTCH ASSEMBLY

2 - #4 THRUST WASHER

Remove input clutch assembly (1).

Courtesy of CHRYSLER GROUP, LLC

1 - OVERDRIVE SHAFT ASSEMBLY

2 - #4 THRUST PLATE (SELECT)

3 - 3 DABS OF PETROLATUM FOR RETENTION

Remove number four thrust plate (2).

Courtesy of CHRYSLER GROUP, LLC

1 - FRONT SUN GEAR ASSEMBLY

2 - #4 THRUST WASHER (FOUR TABS)

Remove front sun gear assembly (1) and number four thrust washer (2).

Courtesy of CHRYSLER GROUP, LLC

1 - #6 NEEDLE BEARING

2 - FRONT CARRIER AND REAR ANNULUS ASSEMBLY (TWIST AND PULL OR PUSH TO REMOVE OR INSTALL).

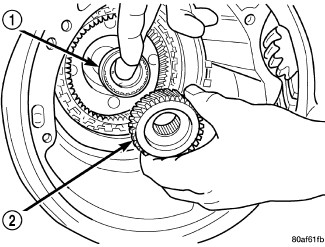

Remove front carrier/rear annulus assembly (2) and number six needle bearing (1).

Courtesy of CHRYSLER GROUP, LLC

1 - #7 NEEDLE BEARING

2 - REAR SUN GEAR

NOTE:
The number seven needle bearing (1) has three anti-reversal tabs and is common with the number five and number two position. The orientation should allow the bearing to seat flat against the rear sun gear (2) when put together.

Remove rear sun gear (2) and number seven needle bearing (1).

Courtesy of CHRYSLER GROUP, LLC

1 - SPRING COMPRESSING 5058A

2 - SCREWDRIVER

3 - SNAP RING

4 - 2/4 CLUTCH RETAINER

NOTE:

Verify that (special tool #5058A, Compressor, Spring) (1) is centered properly over the 2/4 clutch retainer before compressing. If necessary, fasten the (special tool #5058A, Compressor, Spring) bar to the bellhousing flange with any combination of locking pliers and bolts to center the tool properly.

Setup the (special tool #5058A, Compressor, Spring) (1), Compress 2/4 clutch return spring (4) (just enough to remove snap ring) and remove snap ring (3).

Courtesy of CHRYSLER GROUP, LLC

1 - 2/4 CLUTCH RETAINER

2 - 2/4 CLUTCH RETURN SPRING

NOTE:
The 2/4 Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.
Remove 2/4 clutch retainer (1).

Courtesy of CHRYSLER GROUP, LLC

1 - 2/4 CLUTCH RETURN SPRING
Remove 2/4 clutch return spring (1).

Courtesy of CHRYSLER GROUP, LLC

1 - CLUTCH PLATE (4)

2 - CLUTCH DISC (4)

Remove 2/4 clutch pack (1, 2). Tag 2/4 clutch pack for reassembly identification.

Courtesy of CHRYSLER GROUP, LLC

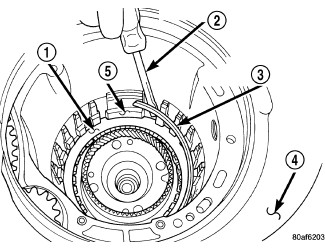

1 - LOW/REVERSE CLUTCH REACTION PLATE

2 - SCREWDRIVER

3 - LOW/REVERSE TAPERED SNAP RING (TAPERED SIDE UP)

4 - OIL PAN FACE

5 - LONG TAB

Remove tapered snap ring (3).

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)

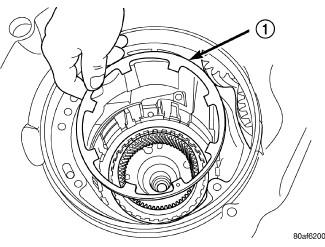

Remove low/reverse reaction plate (1).

Courtesy of CHRYSLER GROUP, LLC

1 - ONE DISC FROM LOW/REVERSE CLUTCH

Remove one low/reverse clutch disc (1).

Courtesy of CHRYSLER GROUP, LLC

1 - SCREWDRIVER

2 - LOW/REVERSE REACTION PLATE FLAT SNAP RING

3 - DO NOT SCRATCH CLUTCH PLATE

Remove low/reverse reaction plate snap ring (2).

Courtesy of CHRYSLER GROUP, LLC

1 - CLUTCH PLATES (5)

2 - CLUTCH DISCS (5)
Remove low/reverse clutch pack (1, 2). Tag the low/reverse clutch pack for reassembly identification .

Courtesy of CHRYSLER GROUP, LLC
Remove transfer gear cover-to-case bolts (2).
Remove transfer gear cover (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the oil scavenger (2).

Courtesy of CHRYSLER GROUP, LLC
Bend back the locking tabs (2) at the output transfer gear retaining strap (3).
Remove the bolts (1) at the output transfer gear retaining strap (3).
Remove the output transfer gear retaining strap (3).

Courtesy of CHRYSLER GROUP, LLC

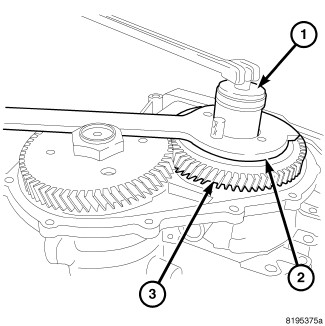

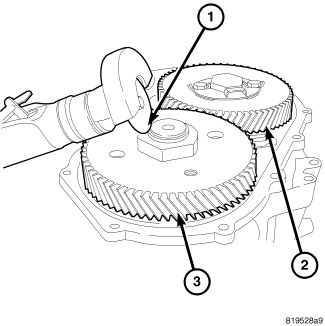

Install the (special tool #9739, Holder, Gear) (2) onto the output transfer gear (3).
Remove the output transfer gear bolt (1).

Courtesy of CHRYSLER GROUP, LLC

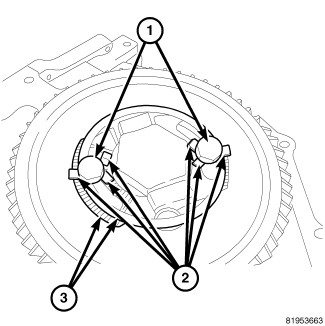

Grind the staked tabs (1) from the transfer gear (underdrive compounder side).
Install the (special tool #9739, Holder, Gear) onto the transfer gear (underdrive compounder side) and remove the nut.
Lift the transfer gear (3) from the underdrive compounder shaft.

Courtesy of CHRYSLER GROUP, LLC

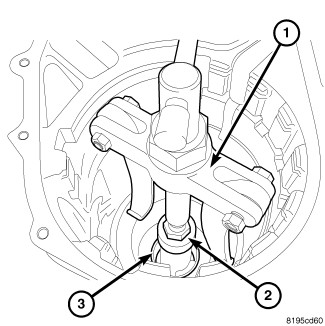

Using (special tool #L-4407A, Puller, Gear) (1) and (special tool #6055, Thrust Button) (3) remove output shaft transfer gear (2) and select shim.

Courtesy of CHRYSLER GROUP, LLC

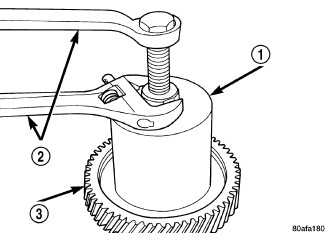

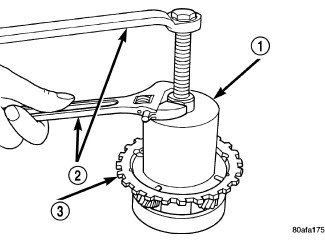

1 - BEARING PULLER 5048 WITH JAWS 5048-5 AND THRUST PAD L-4539-2

2 - WRENCHES

3 - OUTPUT GEAR

Using (special tool #5048, Puller, Bearing) with (special tool #5048-5, Set, Collet Half) and (special tool #L-4539-2, Pad, Thrust) (1) remove output gear bearing cone.

Courtesy of CHRYSLER GROUP, LLC
Using (special tool #C-293-PA, Puller, Press) (1), (special tool #9738, Blocks, Adapter) (3) and (special tool #9678, Press Plug) remove compounder transfer gear bearing cone.

Courtesy of CHRYSLER GROUP, LLC

Remove rear carrier assembly (1) from transaxle (2).

Courtesy of CHRYSLER GROUP, LLC

1 - BEARING PULLER 5048 WITH JAWS 5048-3 AND THRUST BUTTON 6055

2 - WRENCHES

3 - REAR CARRIER ASSEMBLY

Remove rear carrier assembly (3) bearing cone using (special tool #5048, Puller, Bearing) (1) with (special tool #5048-3, Set, Collet Half) and (special tool #6055, Thrust Button).

Courtesy of CHRYSLER GROUP, LLC

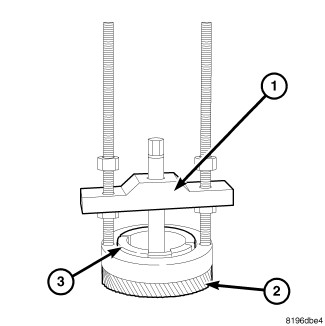

1 - SPRING COMPRESSOR DISC 6057

2 - SPRING COMPRESSOR 5059-A

3 - FORCING SCREW 5058A-3

Install (special tool #6057, Disc, Spring Compressor) (1), (special tool #5059-A, Compressor, Spring) (2) and (special tool #5058A-3, Screw, Forcing) (3).

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE CLUTCH RETURN SPRING

2 - SNAP RING (INSTALL AS SHOWN)

3 - SPRING COMPRESSOR DISC 6057

4 - SPRING COMPRESSOR 5059-A

5 - FORCING SCREW 5058A-3

Compress low/reverse spring using (special tool #5059-A, Compressor, Spring) (4).

Courtesy of CHRYSLER GROUP, LLC

1 - SNAP RING OPENING MUST BE BETWEEN SPRING LEVERS (AS SHOWN)

2 - SNAP RING PLIERS

3 - SPRING COMPRESSOR DISC 6057

Remove snap ring (1) at low/reverse piston return spring.

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE PISTON RETURN SPRING

2 - PISTON

Remove low/reverse spring compressor tool and low reverse piston return spring (1).

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE CLUTCH PISTON

2 - BONDED SEAL

3 - BONDED SEAL

NOTE:

The low/reverse clutch piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

Remove low/reverse clutch piston (1).

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE CLUTCH PISTON RETAINER

2 - SCREWDRIVER

3 - TORX-LOC SCREWS

Remove low/reverse piston retainer-to-case screws (3).

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE CLUTCH PISTON RETAINER

2 - GASKET
Remove low/reverse piston retainer (1).

Courtesy of CHRYSLER GROUP, LLC

1 - GASKET HOLES MUST LINE UP

2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET
Remove low/reverse piston retainer-to-case gasket (2), gasket holes must line up (1).

Courtesy of CHRYSLER GROUP, LLC

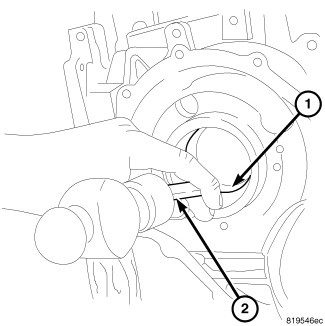

Using a hammer and suitable drift (2), drive out inner output bearing cup (1).

Courtesy of CHRYSLER GROUP, LLC
Using (special tool #6062A, Puller, Bearing Cup) (1), remove outer output bearing cup (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the snap ring (1) at the underdrive compounder assembly (2).

Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1) at the compounder bearing retainer.

Courtesy of CHRYSLER GROUP, LLC

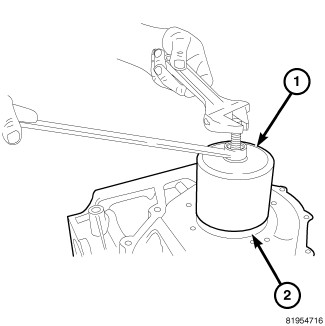

Install (special tool #9908, Adapter, Puller) (2) to the compounder bearing retainer.

Courtesy of CHRYSLER GROUP, LLC

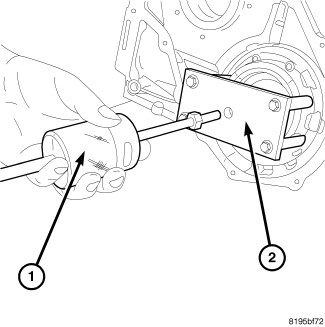

Install (special tool #C-3752, Slide Hammers) (1) to (special tool #9908, Adapter, Puller) (2) and pull the underdrive compounder assembly from the case.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Insure that the planetary gear set / output hub is removed as part of the underdrive compounder assembly.

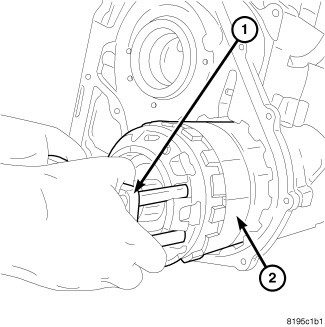

Remove the underdrive compounder assembly (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1) at the remote pinion cover (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the remote pinion (1) and the remote pinion cover (2) from the case.

Courtesy of CHRYSLER GROUP, LLC
Remove the remote pinion cover (1) from the remote pinion (2).

Courtesy of CHRYSLER GROUP, LLC

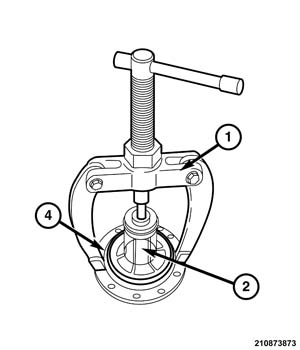

Using (special tool #8913, Remover, Bearing Cup) (2) and (special tool #8915, Brace) (1) remove the remote pinion cover bearing cup (4) and selective shim.

Courtesy of CHRYSLER GROUP, LLC
Using (special tool #8912, Remover, Bearing) and (special tool #8915, Brace) (1, 2) pull remote pinion small bearing cup (3) from the case.

Courtesy of CHRYSLER GROUP, LLC
Remove the differential output bearing cover bolts (1).
Remove differential output bearing cover (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the differential cover bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the differential cover (1).
Remove the out seal (2), oil singer (3) and the small bearing cup (4).
Remove the large bearing cup.

Courtesy of CHRYSLER GROUP, LLC
Remove the differential (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the set screw (1) for the park pawl shaft (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the snap ring (1) for the park guide assembly (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the park guide assembly (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the plug (1) to allow the park pawl shaft to be removed.

Courtesy of CHRYSLER GROUP, LLC
Slide the shaft (1) out of the park pawl (3).

Courtesy of CHRYSLER GROUP, LLC
Remove the park pawl shaft (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the park pawl (1) and the park pawl spring (2).
