Sensor, Transmission Range: Installation

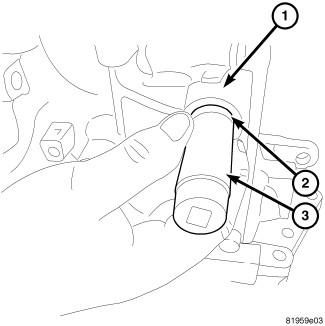

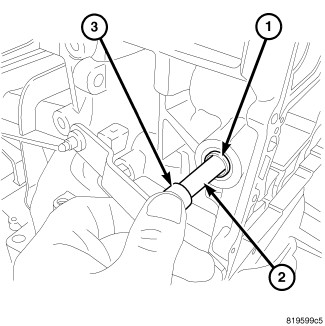

- Install a NEW
manual lever oil seal (2) using socket (3).
- Install the manual lever in the case up to the point of the Transmission Range Sensor (TRS).

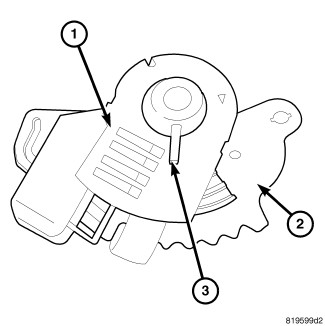

- Install the TRS/rooster comb on the manual lever and fully install the manual lever in the case.

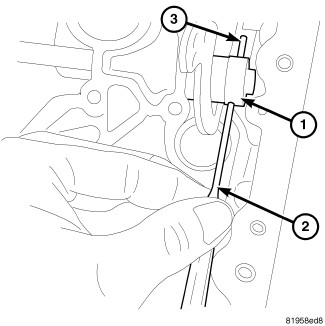

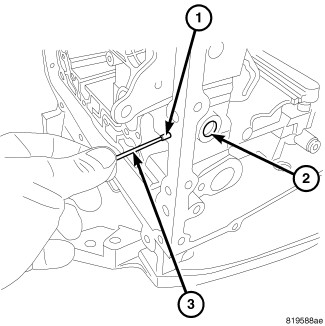

- Install the roll pin (3) to the TRS/rooster comb (1) using a pin punch (2).

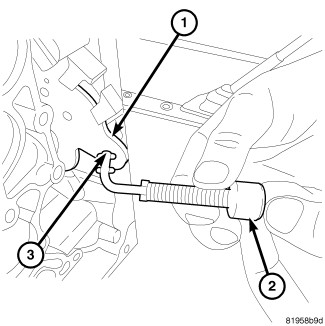

- Install the manual lever set screw (1) to the manual lever (2) and tighten to. Refer to TECHNICAL SPECIFICATIONS .
- Install the park rod assembly (2) to the TRS/rooster comb (1) and place the park rod assembly in the guide assembly.
- Place the park pawl pin into the park pawl tube.
- Install the valve body. Refer to VALVE BODY, INSTALLATION .
