Module-Video C1 (Standard) Connector End View (D3859A)

Harness-Family: Console_Center

Color: BORDEAUX

Gender: FEMALE

Part Number: 1823896-4

Part Description: Not Available

Connector No: D3859A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Video C1 Connector End View (Standard)
GCWD1006339Courtesy of CHRYSLER

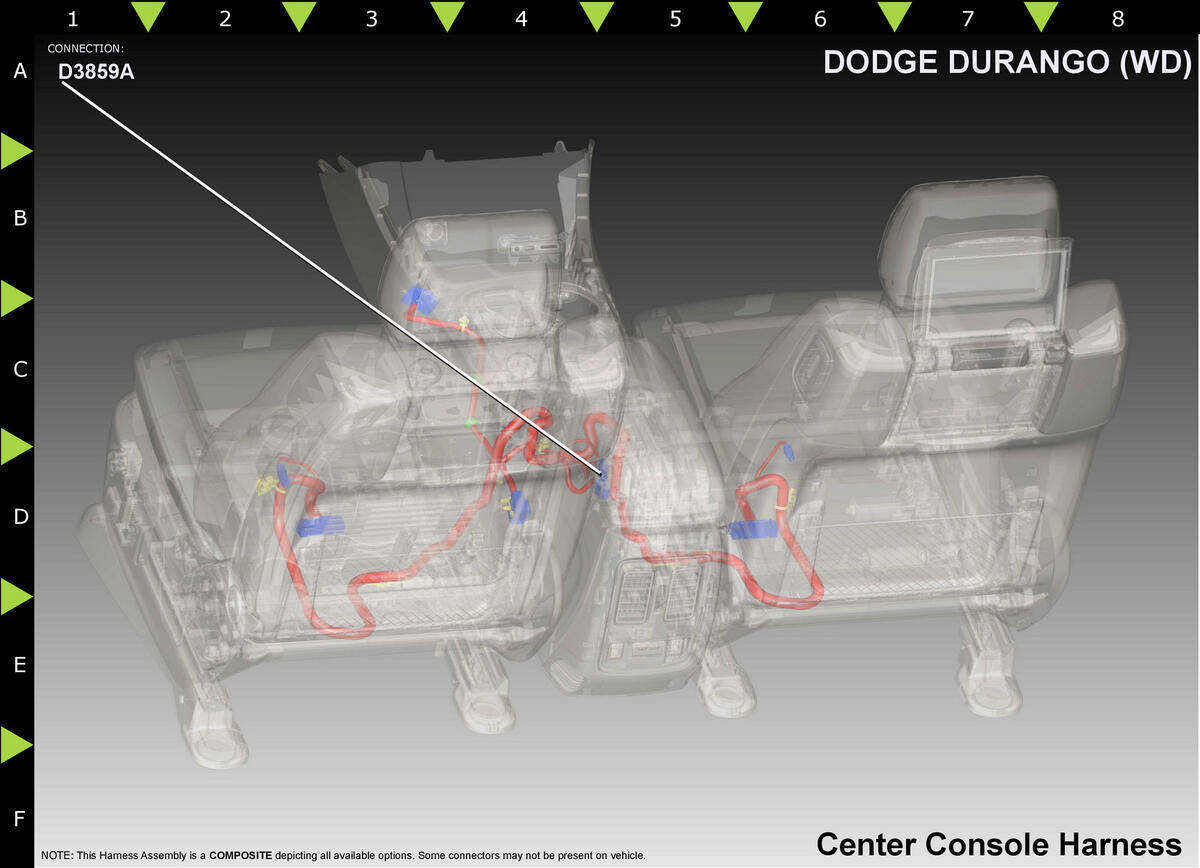

Fig 2: Module-Video C1 Component Location (Standard)
GCWD1292024Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
2 X912 GY/OG NA VIDEO LVDS DATA 0 (+) N/A
4 X911 GY/BN NA VIDEO LVDS DATA 0 (-) N/A
(1) Pins not listed are not used for this connector
