Module-Body Control C2 (Standard) Connector End View (D2762B)

Harness-Family: Body_Rear

Color: BLACK

Gender: FEMALE

Part Number: 1/01497/87

Part Description: Not Available

Connector No: D2762B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

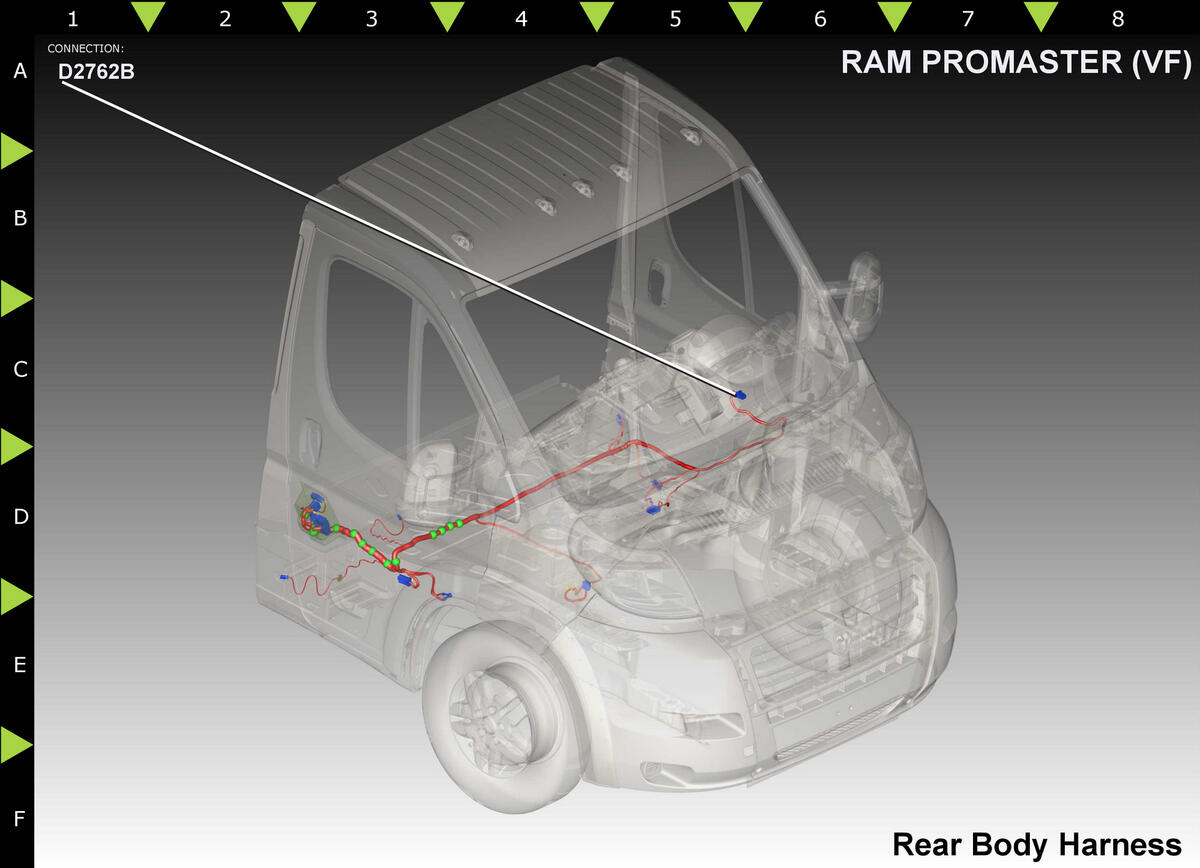

Fig 2: Module-Body Control C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A306

FUSED B(+)

HEATED FRONT SEATS/EXCEPT REAR WINDOW DEFROSTER

⁽¹⁾	Pins not listed are not used for this connector
