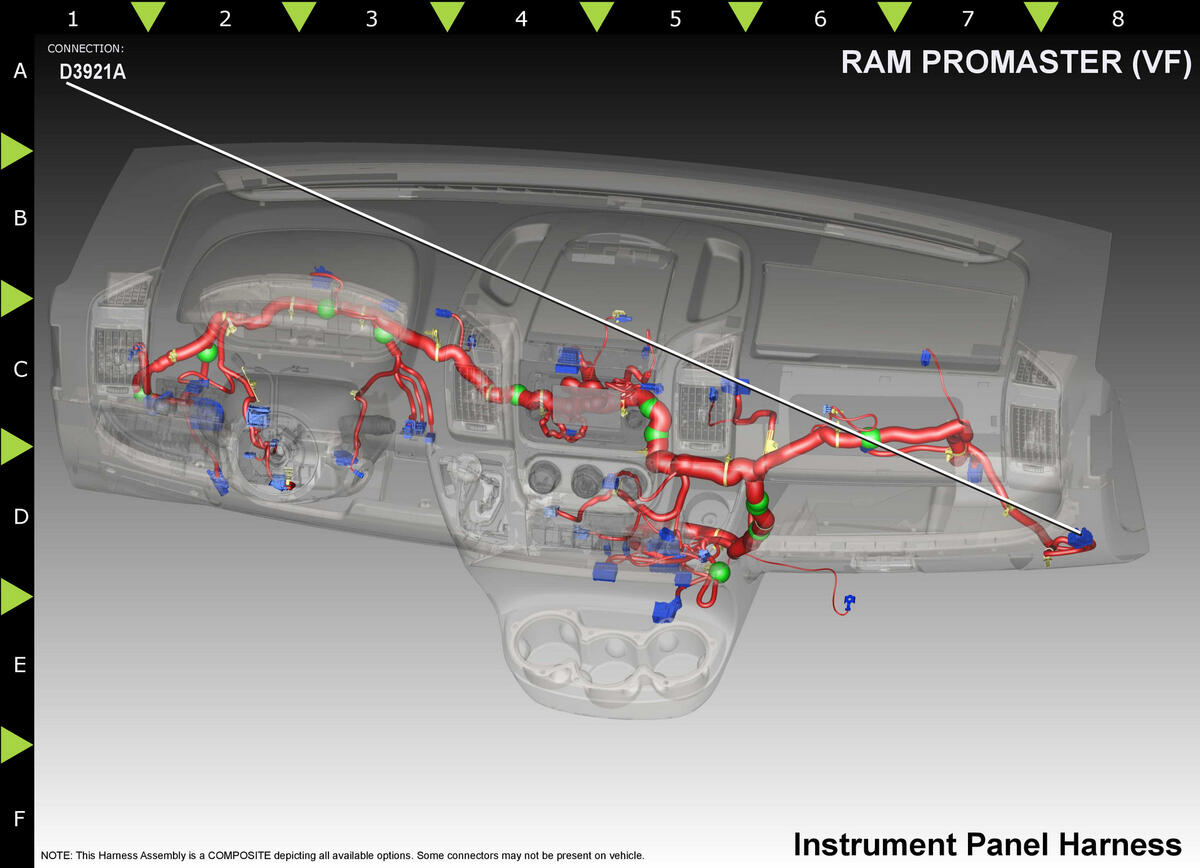

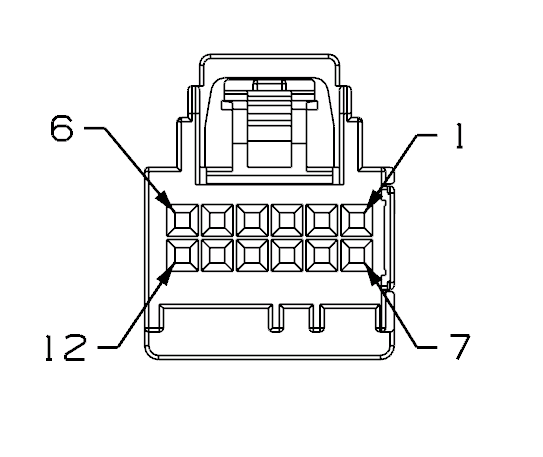

Module-Security Gateway C1 (Standard) Connector End View (D3921A)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 1/10061/97
Part Description: Not Available
Connector No: D3921A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 3 | D45 | GN | 0.35 | CAN C (+) | N/A | ||
| 4 | D45 | GN | 0.35 | CAN C (+) | TELEMATICS | ||
| 5 | D45 | GN | 0.35 | CAN C (+) | EXCEPT VSIM | ||
| 6 | Z930 | BK | 0.5 | GROUND | N/A | ||
| 10 | D46 | BN | 0.35 | CAN C (-) | N/A | ||
| 11 | D46 | BN | 0.35 | CAN C (-) | TELEMATICS | ||
| 12 | D46 | BN | 0.35 | CAN C (-) | EXCEPT VSIM | ||
|
|||||||
