Module-Steering Control C1 (Standard) Connector End View (D3816A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1/08362/07

Part Description: Not Available

Connector No: D3816A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

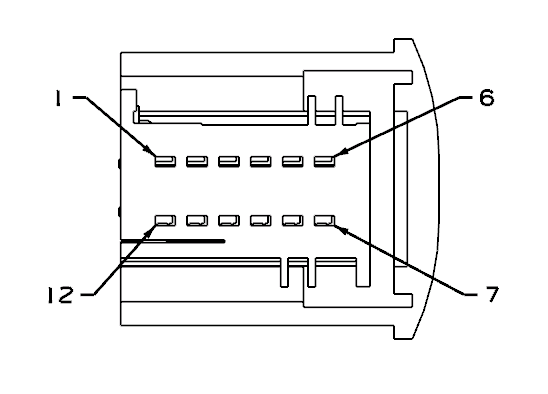

Fig 1: Module-Steering Control C1 Connector End View (Standard)
GCWD1083511Courtesy of CHRYSLER

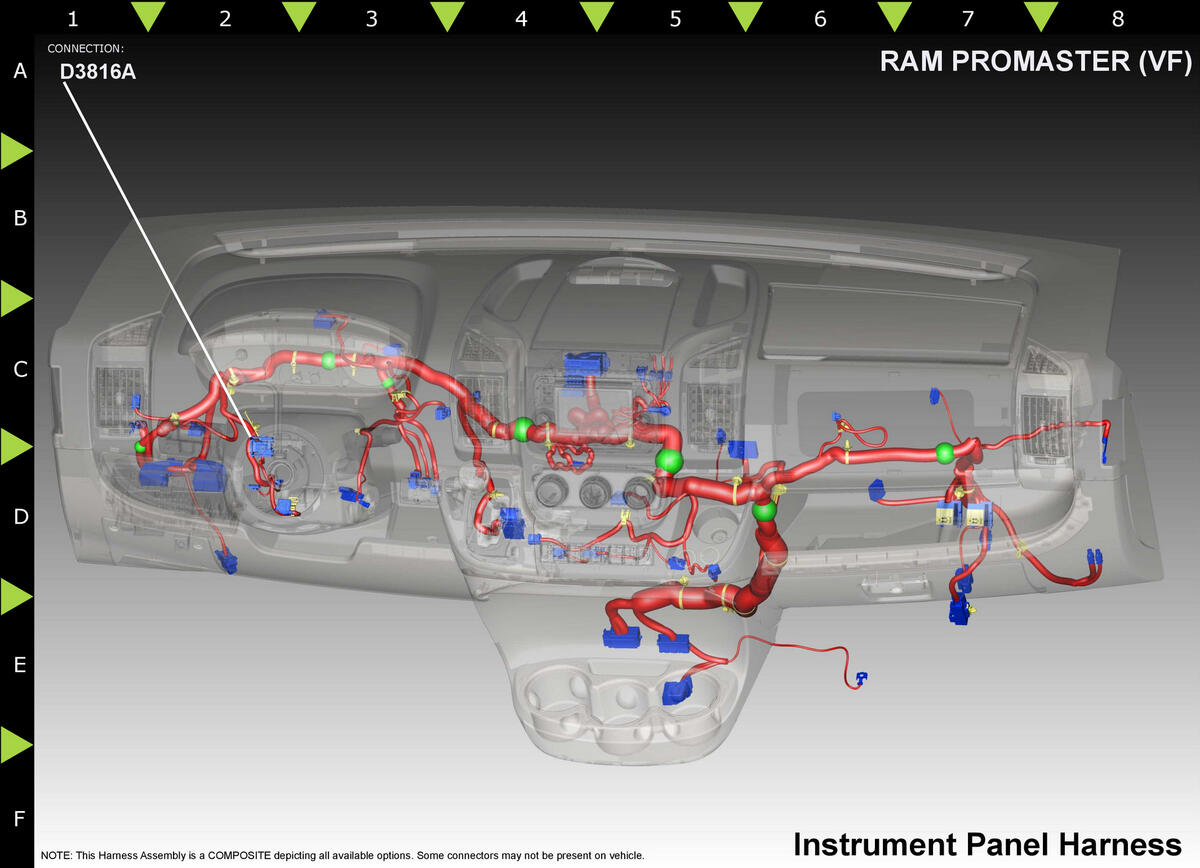

Fig 2: Module-Steering Control C1 Component Location (Standard)
GCWD1290867Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 W23 WH/DB 0.35 HEADLAMP WASHER RELAY OUTPUT N/A
2 W8 WH/BK 0.35 WIPER ON/OFF RELAY CONTROL N/A
4 Z930 BK/VT 0.35 GROUND N/A
5 L12 VT/RD 0.35 TURN SIGNAL INPUT MUX N/A
6 L37 WH/GN 0.35 HIGH BEAM SWITCH SENSE N/A
7 L107 YE/BK 0.35 MAIN LIGHTING SWITCH N/A
11 W528 GN/GY 0.35 TRIP RESET SIGNAL N/A
12 W8 WH/RD 0.35 WIPER ON/OFF RELAY CONTROL N/A
(1) Pins not listed are not used for this connector
