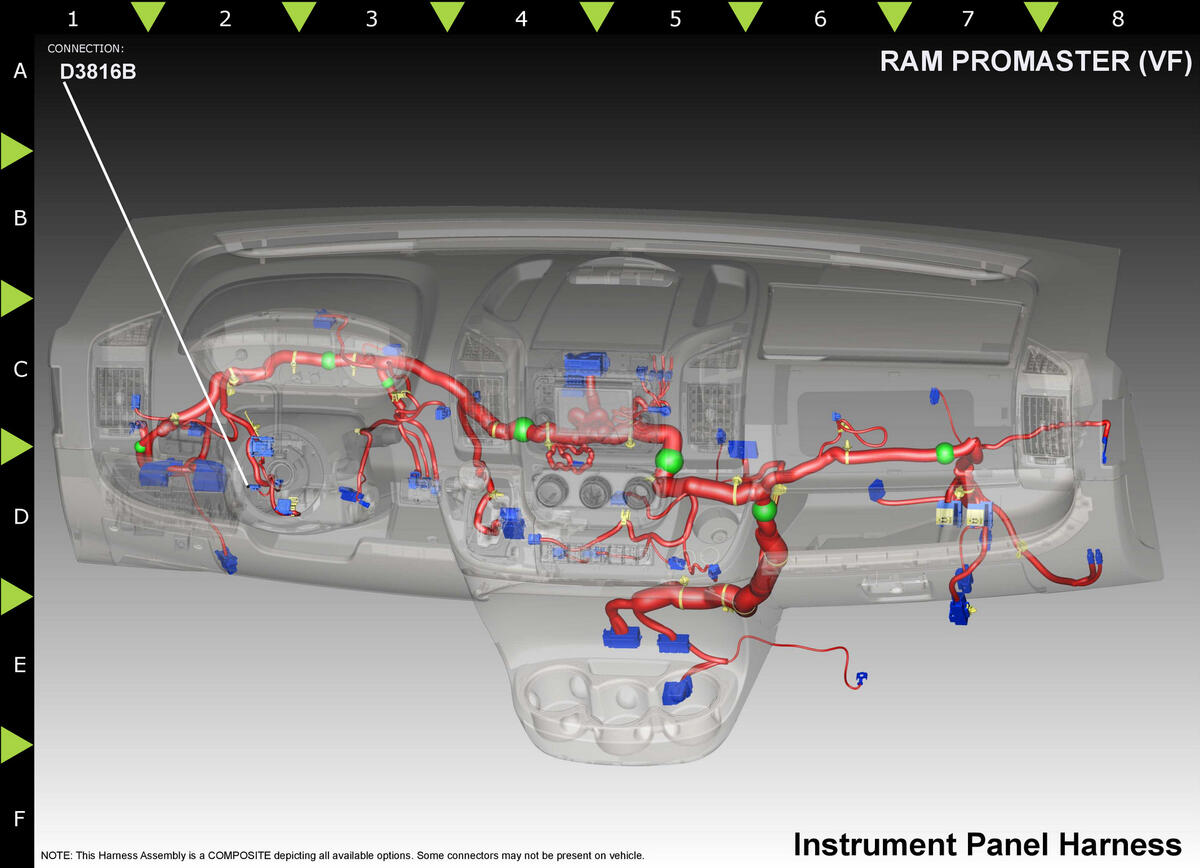

Module-Steering Control C2 (Standard) Connector End View (D3816B)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 1/09850/98
Part Description: Not Available
Connector No: D3816B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | V937 | RD/GN | 0.35 | S/C SWITCH GROUND | SPEEED CONTROL | ||
| 5 | V71 | BK | 0.35 | S/C SIGNAL 1 | SPEEED CONTROL | ||
| 6 | V72 | YE/GY | 0.35 | S/C ON/OFF SIGNAL | SPEEED CONTROL | ||
|
|||||||
