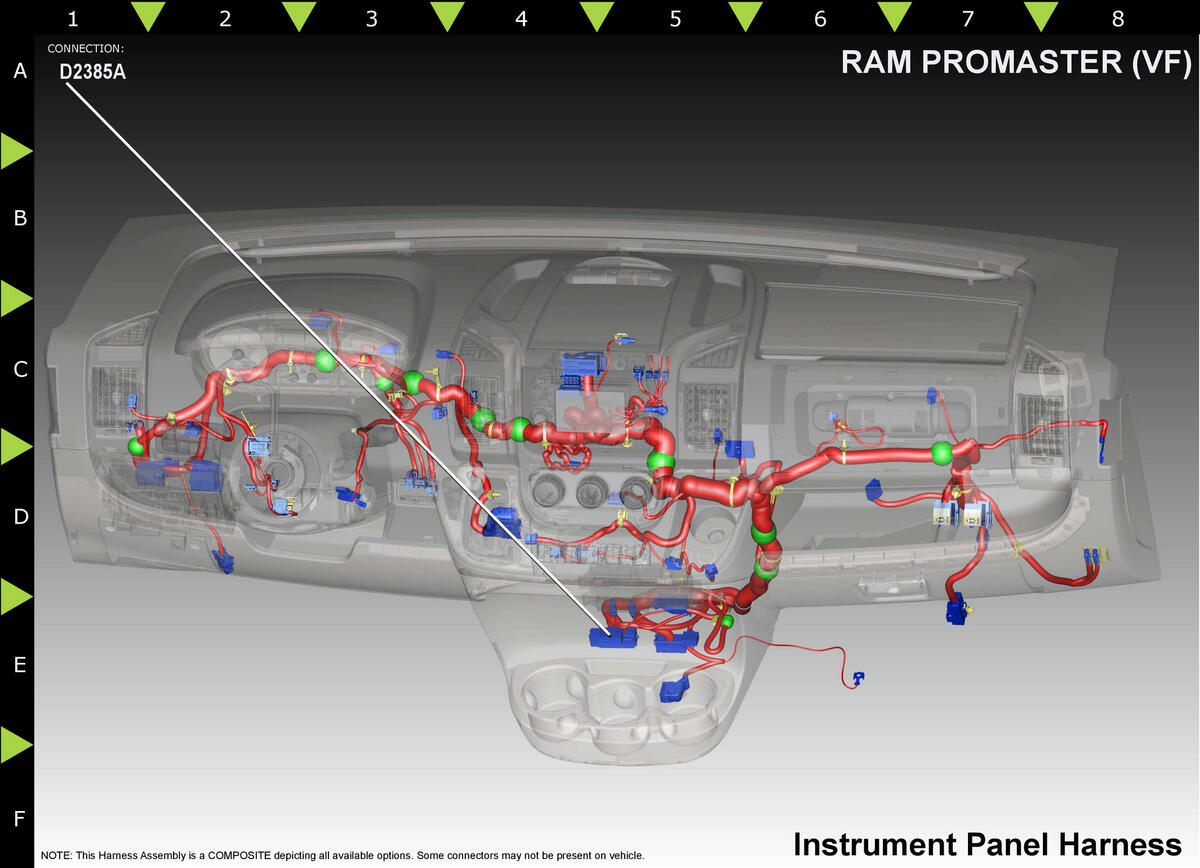

Module-Vehicle System Interface C1 (Standard) Connector End View (D2385A)
Harness-Family: IP
Color: LIGHT GRAY
Gender: FEMALE
Part Number: 7283-6467-40
Part Description: Not Available
Connector No: D2385A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | A807 | RD/GN | 2.5 | FUSED B(+) | VSIM | ||
| 4 | W720 | VT/OG | 0.5 | UPFITTER ANY DOOR AJAR SIGNAL | VSIM | ||
| 5 | W719 | WH/VT | 0.75 | UPFITTER HAZARD INDICATOR FEED | VSIM | ||
| 6 | W504 | BN | 0.5 | TRANSMISSION OUT OF PARK SIGNAL | VSIM | ||
| 7 | Z930 | BK | 1.5 | GROUND | VSIM | ||
| 10 | W681 | BN/GY | 0.75 | UPFITTER RIGHT TURN SIGNAL ON | VSIM | ||
| 12 | W540 | BN/GN | 0.5 | MALFUNCTION INDICATOR SIGNAL | VSIM | ||
|
|||||||
