Sensor, Fuel Tank Pressure: Removal

Disconnect and isolate the negative battery cable.
Remove the fuel filler cap to relieve tank pressure.

Courtesy of CHRYSLER GROUP, LLC

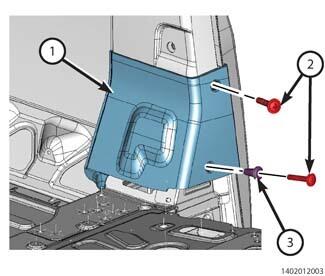

Remove the B-pillar lower panel.

Courtesy of CHRYSLER GROUP, LLC

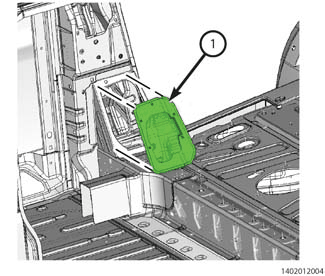

Remove the inner cover.

Courtesy of CHRYSLER GROUP, LLC

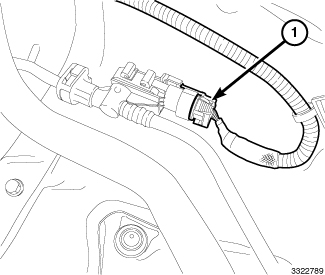

Disconnect the fuel tank pressure sensor electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC

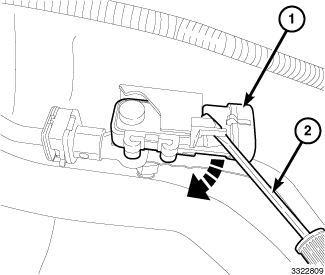

Carefully raise the retaining tab (2), rotate and remove the fuel tank pressure sensor (1) from the fuel tank vent tube.

Courtesy of CHRYSLER GROUP, LLC

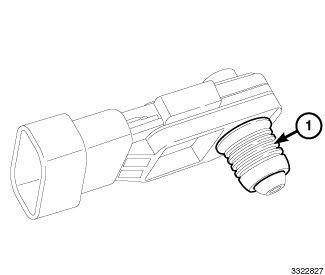

The fuel tank pressure sensor seal (1) can be reused if not damaged.

Courtesy of CHRYSLER GROUP, LLC

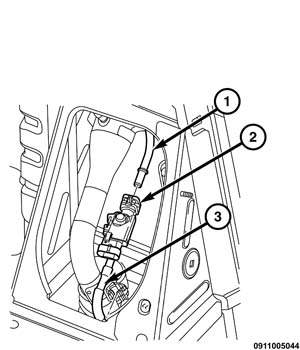

If required, separate the fuel pressure line (1) at the sensor (2).

Courtesy of CHRYSLER GROUP, LLC
If required, raise the vehicle.

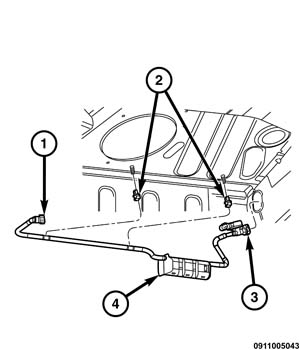

Remove the pressure line (1) from the charcoal canister.
Remove the line from the clips (2).
Remove the line from the vehicle.
