Module, Active Damping Control (ADCM): Removal

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

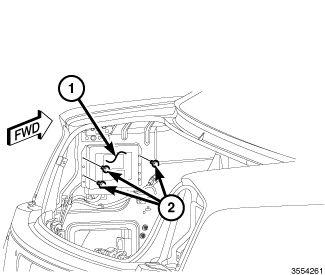

GC0152157Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the left side inner trunk fasteners and position the carpet aside.
  3. Disconnect the wire harness connectors and remove the bolts (2) securing the Adaptive Damping Control Module (ADCM).
  4. Release the integral latches securing the ADCM (1) to the mounting bracket and slide the module upward to remove from the vehicle.
