Module And Bracket

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the front fascia from the vehicle. Refer to FASCIA, FRONT, REMOVAL .

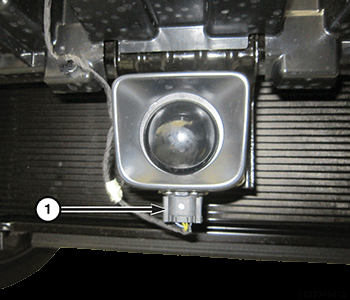

    GC0170255Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wiring harness connector (1) from the Adaptive Cruise Control (ACC) module.
  5. Remove the energy absorber from the vehicle.

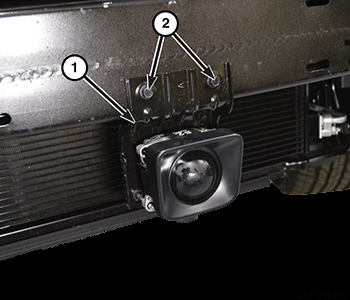

    GC0170147Courtesy of CHRYSLER GROUP, LLC
  6. Remove the fasteners (2) securing the mounting bracket (1) to the front bumper support bar.
  7. Remove the mounting bracket from the front bumper support bar.
