Module, Anti-Lock Brake System (Abs): Installation

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Clean any debris off the mating surfaces of the Hydraulic Control Unit (HCU) and Antilock Brake System (ABS) module.
NOTE:
Do not lubricate the ABS module seal.

Courtesy of CHRYSLER GROUP, LLC

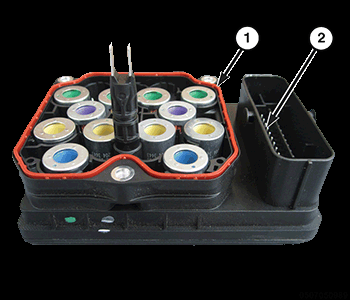

A new seal (1) must be installed to properly seal the ABS module (2); DO NOT REUSE ANY ABS MODULE SEALS .

Courtesy of CHRYSLER GROUP, LLC
Align and install the ABS module (1) to the HCU (2).

Courtesy of CHRYSLER GROUP, LLC
Install and securely tighten the ABS module to HCU mounting fasteners (3).
Install and securely tighten the Integrated Control Unit (ICU) to bracket fasteners.
Install the ICU. Refer to INTEGRATED CONTROL UNIT (ICU), INSTALLATION .
