Module, Drivetrain Control (DTCM): Removal

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

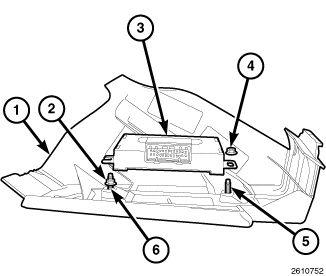

  2. Remove the cowl side trim panel (1). Refer to PANEL, COWL TRIM, REMOVAL .
    GC0095226Courtesy of CHRYSLER GROUP, LLC
  3. Pull back the driver foot well carpet and position aside to access the Drivetrain Control Module (DTCM) (3).
  4. Remove the DTCM mounting fasteners (2) and (4) from the mounting studs (5) and (6).
  5. Remove the DTCM from the vehicle.
