Module, Electronic Shift (ESM): Removal
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

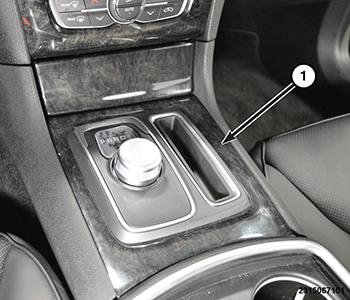

- Using a trim stick or equivalent, remove the shifter bezel assembly (1).
- Disconnect the wire harness connector and remove the Electronic Shift Module (ESM) from the vehicle.
