Module, Heated Seat (HSM): Installation

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Properly align the Heated Seat Module (HSM) retaining tabs to the bracket, prior to engagement. Failure to follow these instructions may result in damage to the HSM.

Courtesy of CHRYSLER GROUP, LLC

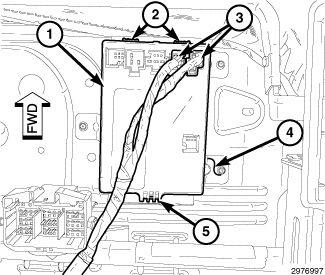

Position the Heated Seat Module (HSM) (1) to the bracket (4) and engage the two front retaining tabs (2). Make sure the front retaining tabs are correctly engaged to the bracket.
Engage the rear HSM retaining tab (5). Make sure the rear retaining tab is fully engaged to the bracket.
Connect the electrical connectors (3) to the HSM.
Install the seat. Refer to SEAT, FRONT, INSTALLATION .
Reconnect the negative battery cable.

Once the key is cycled to the ON position, the HSM will be configured to the vehicle. Check for DTCs and operation. If DTCs are present. Refer to DTC TROUBLESHOOTING .
