Module, Instrument Panel Cluster (IPC): Installation

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, personal injury or death.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If the Instrument Panel Cluster (IPC) has been replaced, the new IPC should already be programmed with the correct mileage. Verify the correct mileage using the diagnostic scan tool.

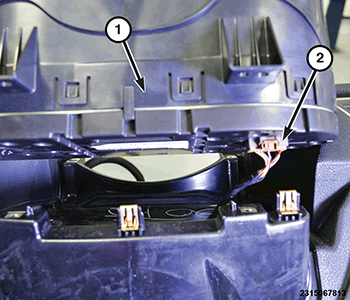

Position the IPC (1) into instrument panel opening.
Connect the wire harness connector (2) to the IPC.

Courtesy of CHRYSLER GROUP, LLC

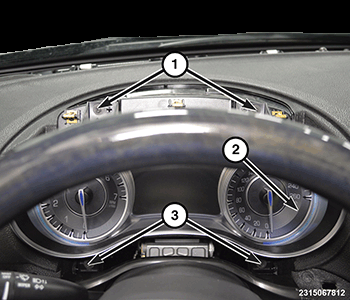

Tilt the IPC (2) forward to install and securely tighten the upper and lower fasteners (1) and (3).

Courtesy of CHRYSLER GROUP, LLC

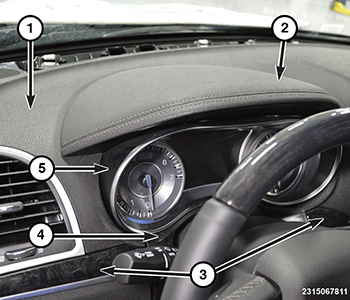

Position the steering column shroud gap hider (4), and press into place.
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
Install the two small instrument panel trim inserts (3).
Position the upper hood (2) on the instrument panel (1), and press into place engaging the clips that secure the hood.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
