Module, Integrated Center Stack (ICSM): Description

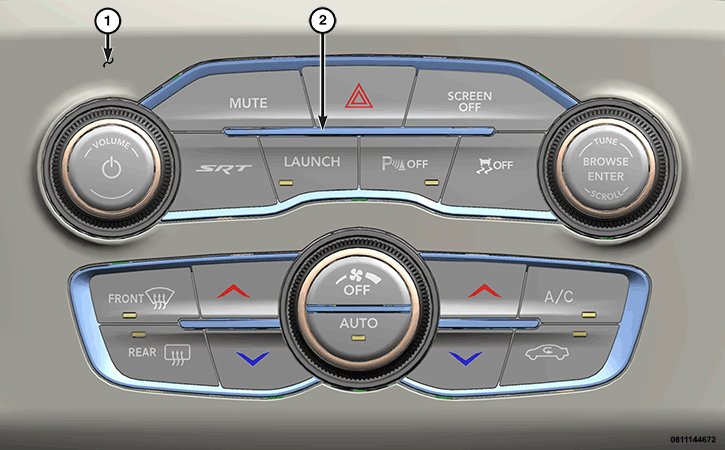

The Integrated Center Stack (ICS) Module (2) is located in the lower instrument panel center stack (1). The ICS module is available in multiple configurations, which vary depending upon the equipment in the vehicle. However, every available configuration includes the hazard warning push button switch.
The ICS module housing and the push buttons are constructed of molded plastic. Each push button has a smooth finish and is clearly identified with the appropriate text and International Control and Display Symbol icons. Refer to INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS, DESCRIPTION . Several of the push buttons feature Light Emitting Diode (LED) units to give the vehicle operator an indication when the function of that switch is currently active. The back of the ICS module housing has an integral connector receptacle containing terminal pins that connect the ICS module to the vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness. Panel lamps dimmer controlled illumination lamps integral to the circuit board within the ICS module provide backlighting for visibility at night, but these lamps are not serviceable. The individual switches cannot be repaired and are not serviced individually. If any component within the ICS module is ineffective or damaged, the entire ICS module must be replaced.
