Module, Intrusion Transceiver (ITM): Installation
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

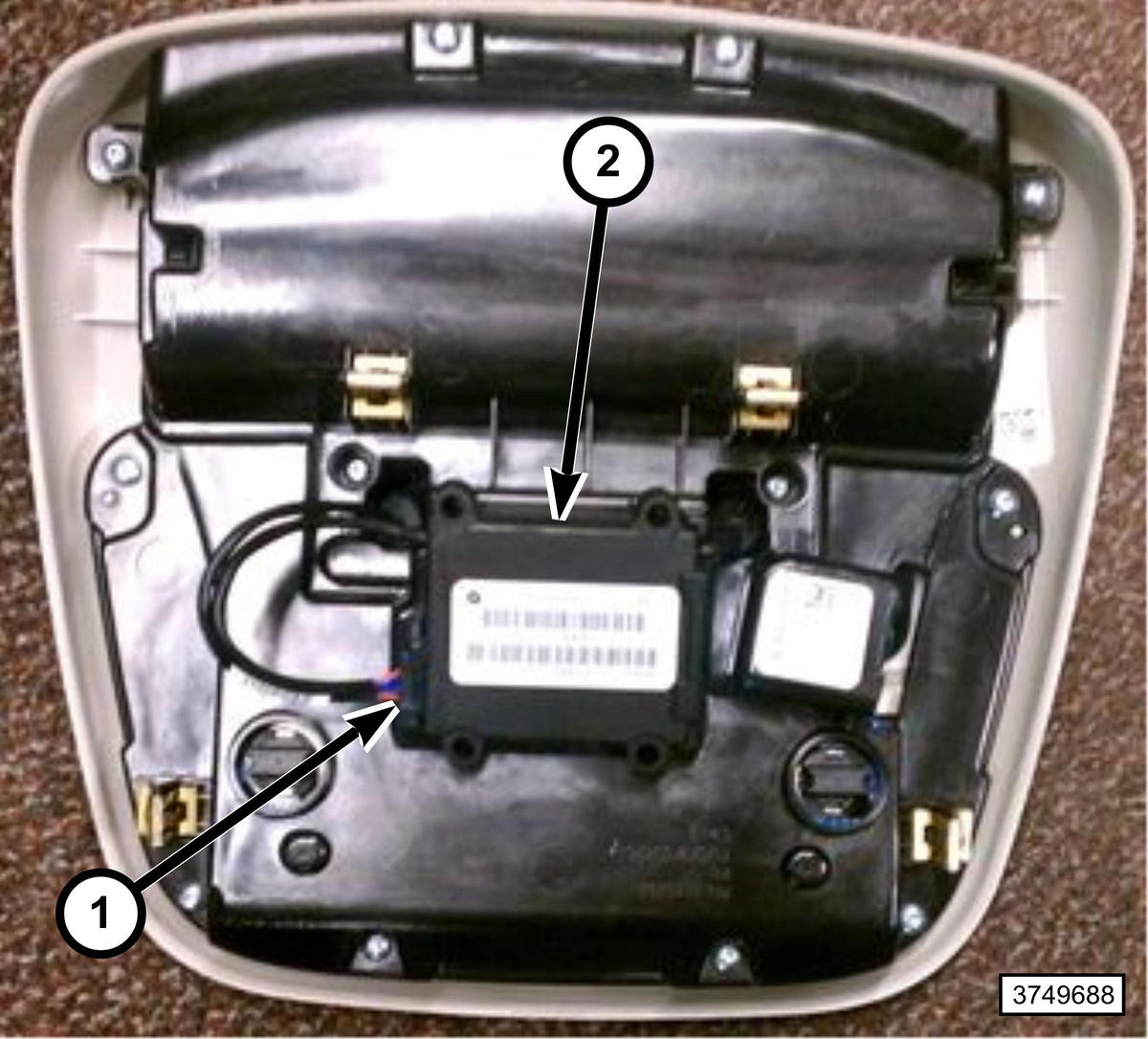

- Position the Intrusion Transceiver Module (ITM) (2) into the mount integral to the overhead console housing. Be certain that all of the latch features are fully engaged
- Connect the intrusion module sensor pigtail wire harness connector (1) to the ITM.

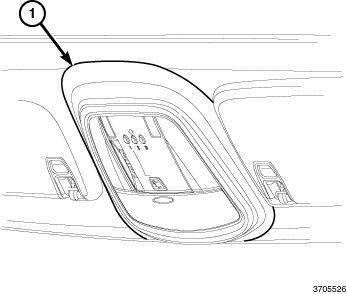

- Install the overhead console into the headliner. Refer to CONSOLE, OVERHEAD, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
