Module, Keyless Ignition Node (Kin): Removal
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

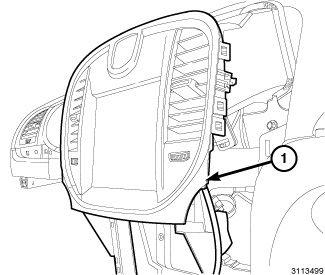

Mid ICS shown in illustration, base similar.
- Disconnect the negative battery cable.
- Remove the instrument cluster center bezel (1). Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
- Reach through the Integrated Center Stack (ICS) screen opening and disconnect the Keyless Ignition Node (KIN) electrical connector.
- Depress on the release tabs and push the KIN out the front of the instrument panel.
