Module, Memory: Removal

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Depending on how equipped, more memory seat module electrical connectors may be present than shown in the illustration.

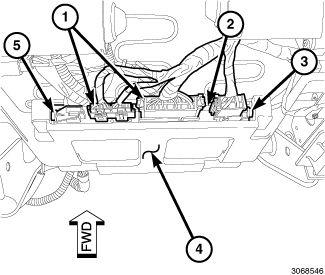

GC0144638Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.
  2. Remove the fasteners that secure the driver seat to the body and tip the seat rearward to gain access to the underneath of the seat. Refer to SEAT, FRONT, REMOVAL .
  3. Disconnect the wire harness connectors (1) from the front of the Memory Seat Module (MSM) (2).
  4. Disengage the front MSM retaining tabs (3 and 5) from the bracket (4) by carefully pushing up on the front of the MSM.
  5. Disengage the rear MSM retaining tabs from the bracket by carefully pulling the MSM forward.
  6. Disconnect wire harness connectors from the rear of the MSM and remove the MSM.
