Module, Park Assist (PAM): Removal
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.

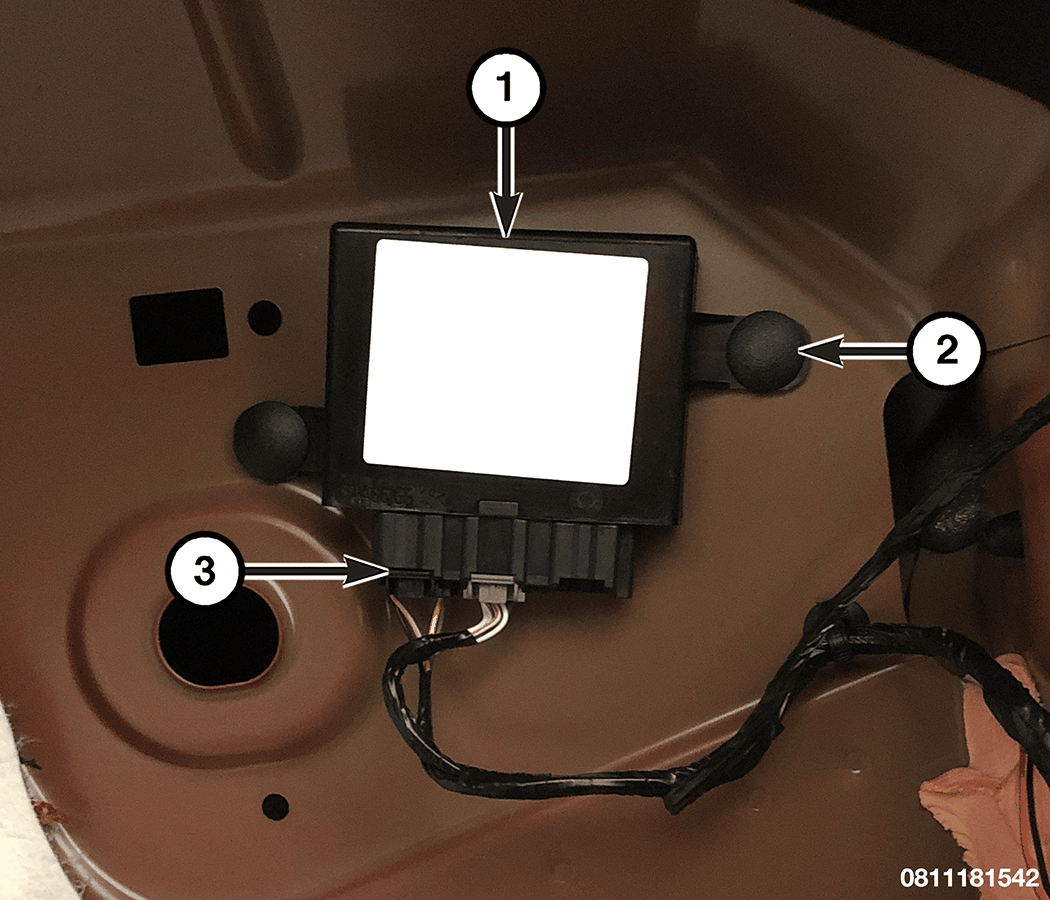

- Remove the trunk close out trim panel and the right quarter trim panel to access the Park Assist Module (PAM) (1). Refer to PANEL, TRUNK TRIM, REAR, REMOVAL .
- Disconnect the wire harness connectors (3) from the PAM.
- Remove the retainers (2) that secure the PAM to the quarter inner panel.
- Remove the PAM from the vehicle.
