Module, Tire Pressure Monitoring (TPM): Removal
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear RH splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL
.

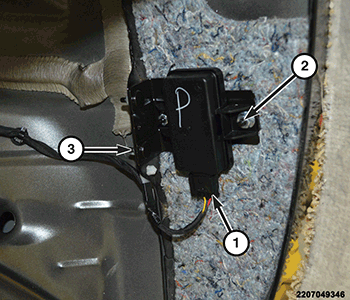

- Disconnect the Tire Pressure Monitoring (TPM) Module wire harness connector (1).
- Remove the front TPM module fasteners (2), then remove the TPM module fasteners (3) from the body flange.
- Remove the TPM module from the vehicle.
