Module-Drive Train Control C1 (Standard) Connector End View (D3872A)

Harness-Family: Suspension_Jumper

Color: BLUE

Gender: FEMALE

Part Number: 7283-6456-90

Part Description: KAIZEN YESC SUB ASSEMBLY

Connector No: D3872A

Option: Standard

Repair Kit Part Number: 68065019AA

Cavity Count: 16

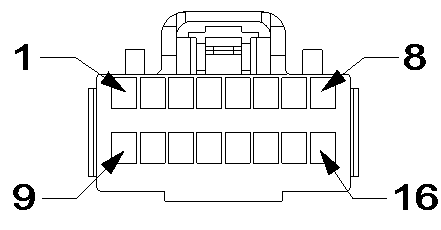

Fig 1: Module-Drive Train Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

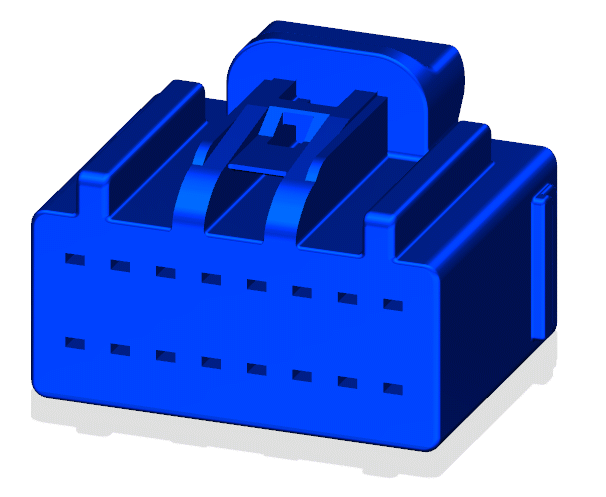

Fig 2: Module-Drive Train Control C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Drive Train Control C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

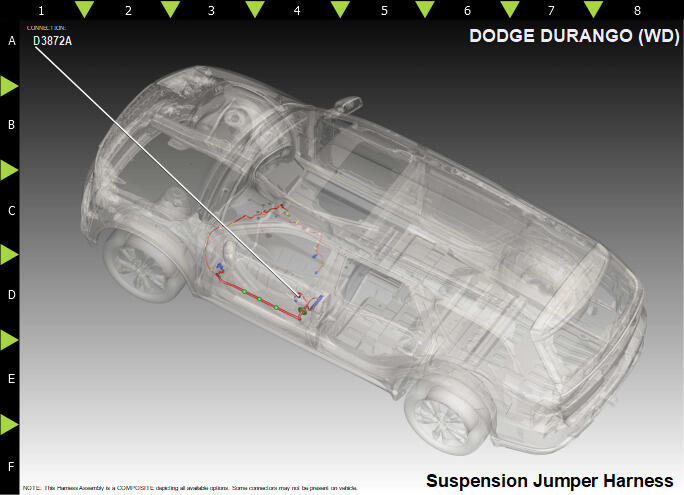

Fig 4: Module-Drive Train Control C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T301	DG/YE	1.0	SWITCHED BATTERY SOLENOID SUPPLY	N/A
2	G95	VT/BN	0.50	NEUTRAL INDICATOR	N/A
3	T313	YE/GN	0.50	MODE SENSOR SIGNAL	N/A
4	F946	PK/GN	0.50	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
5	D302	DG	0.50	CAN C (-)	N/A
6	D301	WH	0.35	CAN C (+)	N/A
7	K77	BN/VT	0.50	TRANSFER CASE POSITION SENSOR INPUT	N/A
8	K977	BN	0.50	MODE SELECT	N/A
9	T317	YE/BG	1.0	STEP MOTOR CONTROL D	N/A
10	K594	BN/GN	0.50	DRIVETRAIN SENSOR RETURN	N/A
11	K504	BN	0.50	DRIVETRAIN 5 VOLT SUPPLY	N/A
