Module-Drive Train Control C2 (Standard) Connector End View (D3872B)

Harness-Family: Suspension_Jumper

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 15466671

Part Description: GT SERIES CONNECTOR ASSEMBLY

Connector No: D3872B

Option: Standard

Repair Kit Part Number: 68065020AA

Cavity Count: 4

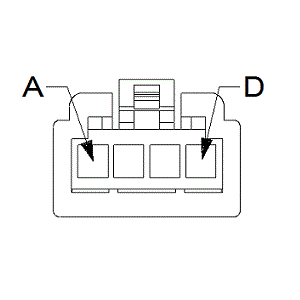

Fig 1: Module-Drive Train Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

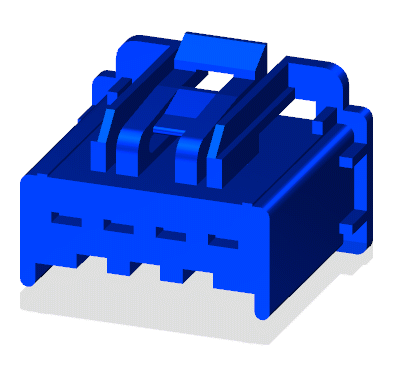

Fig 2: Module-Drive Train Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Drive Train Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Drive Train Control C2 Component Location View (Standard)

Courtesy of CHRYSLER
