Module-Fuel Pump Control 2 (Standard) Connector End View (D3941A)

Harness-Family: Under_Body

Color: GRAY

Gender: FEMALE

Part Number: 13669205

Part Description: Not Available

Connector No: D3941A

Option: Standard

Repair Kit Part Number: 68499976AA

Cavity Count: 8

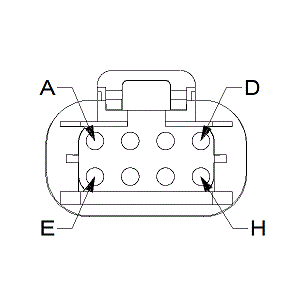

Fig 1: Module-Fuel Pump Control 2 Connector End View (Standard)

Courtesy of CHRYSLER

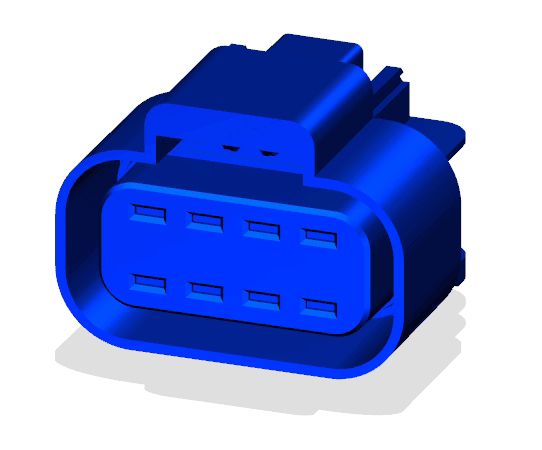

Fig 2: Module-Fuel Pump Control 2 Isometric View (Standard)

Courtesy of CHRYSLER

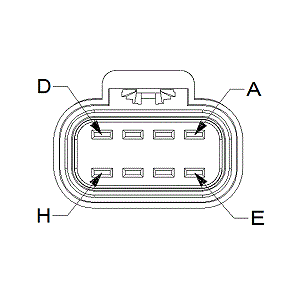

Fig 3: Module-Fuel Pump Control 2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

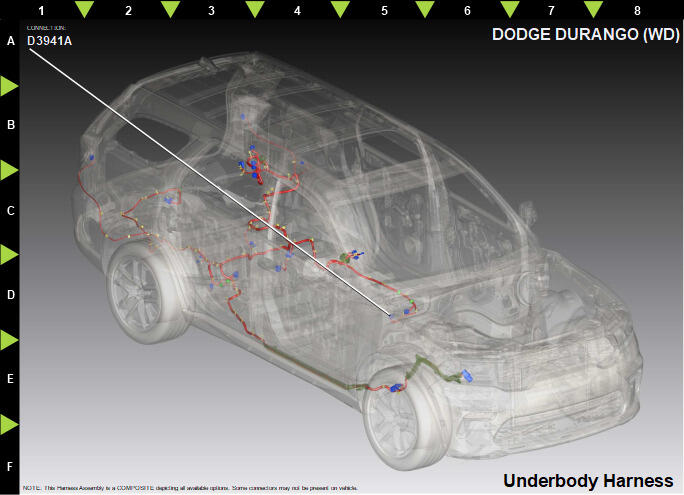

Fig 4: Module-Fuel Pump Control 2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A	N215	GY/PK	3.0	FUEL PUMP 2 FEED	N/A
B	N211	GY/BG	0.50	FPCM PWM CONTROL	N/A
C	N0	NA	0	NO CONNECT	N/A
D	N213	GY/OG	3.0	FUEL PUMP 2 CONTROL	N/A
E	Z917	BK	3.0	GROUND	N/A
F	N212	GY/GN	0.50	FUEL PUMP 2 RETURN	N/A
G	S000	BK	0.50	CLUTCH SPEED SIGNAL SHIELD	N/A
H	N214	GY/BK	3.0	FUEL PUMP 2 GROUND	N/A
