Module-Global TELEMATIC Box C1 (Standard) Connector End View (D335A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1326140-1_1326141-1

Part Description: Not Available

Connector No: D335A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

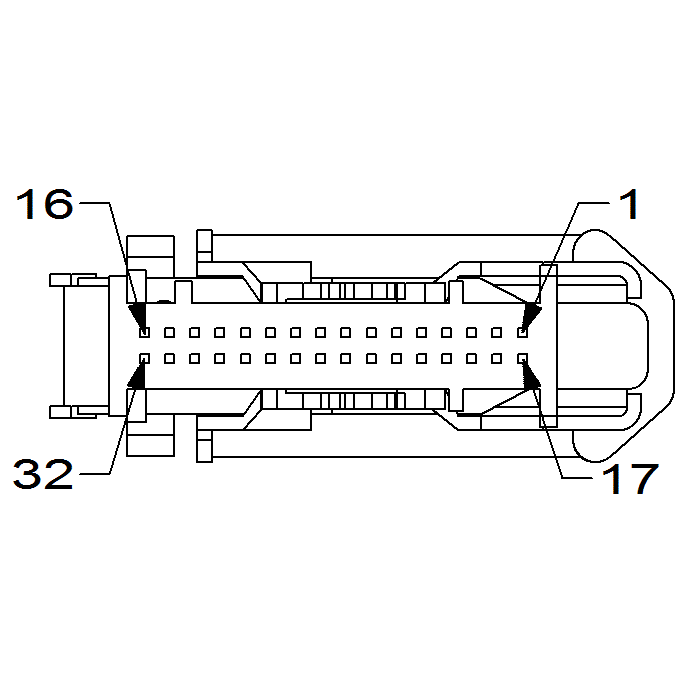

Fig 1: Module-Global Telematic Box C1 Connector End View (Standard)

Courtesy of CHRYSLER

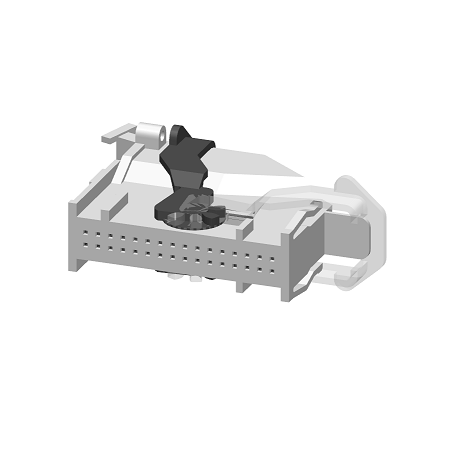

Fig 2: Module-Global Telematic Box C1 Isometric View (Standard)

Courtesy of CHRYSLER

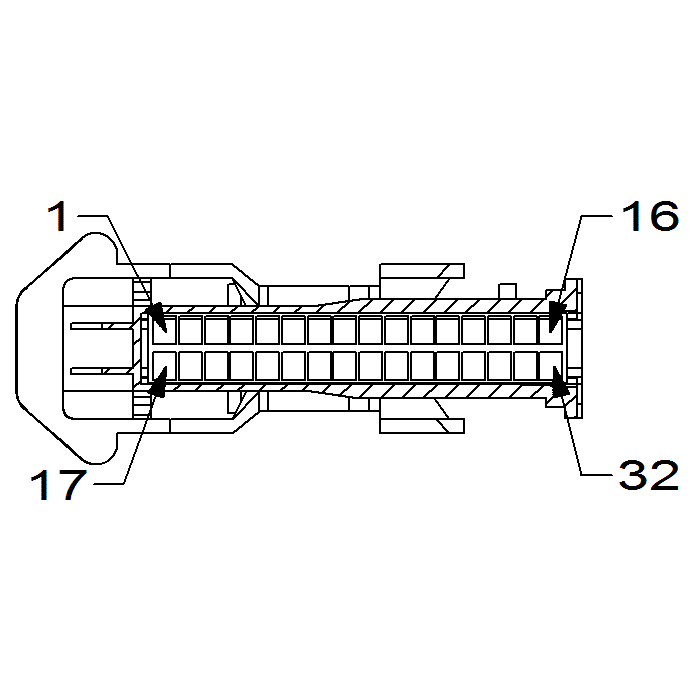

Fig 3: Module-Global Telematic Box C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

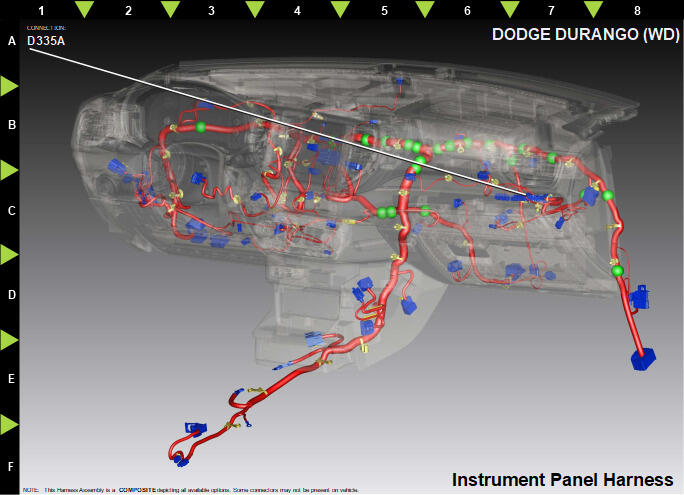

Fig 4: Module-Global Telematic Box C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z912	BK/BU	0.80	GROUND	N/A
2	N0	NA	0	NO CONNECT	N/A
3	A933	RD	0.80	FUSED B(+)	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	D438	DB	0.35	CAN IHS (-) AT	N/A
25	D437	WH	0.35	CAN IHS (+) AT	N/A
26	D435	YE/VT	0.35	CAN C (-) AT	N/A
27	D436	GY	0.35	CAN C (+) AT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	N0	NA	0	NO CONNECT	N/A
32	N0	NA	0	NO CONNECT	N/A
