Module-Global TELEMATIC Box C4 (Standard) Connector End View (D335D)

Harness-Family: IP

Color: BROWN

Gender: FEMALE

Part Number: 59Z006-T00-F_59K2DV-1XXA4

Part Description: Not Available

Connector No: D335D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

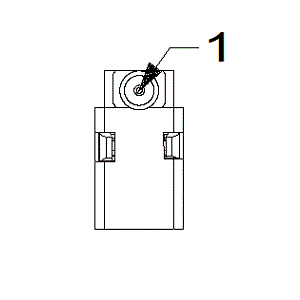

Fig 1: Module-Global Telematic Box C4 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Global Telematic Box C4 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Global Telematic Box C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

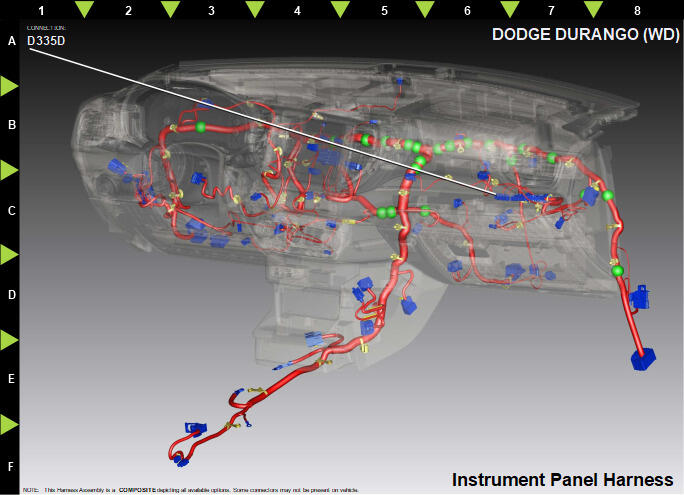

Fig 4: Module-Global Telematic Box C4 Component Location View (Standard)

Courtesy of CHRYSLER
