Module-Keyless Ignition Node (Standard) Connector End View (D2664A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 776204-2

Part Description: INSULATOR

Connector No: D2664A

Option: Standard

Repair Kit Part Number: 05183472AA

Cavity Count: 6

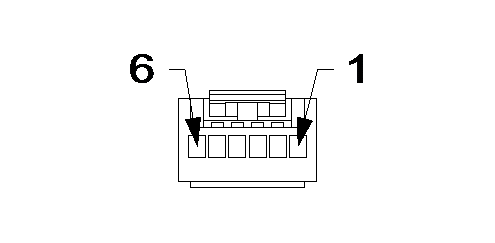

Fig 1: Module-Keyless Ignition Node Connector End View (Standard)

Courtesy of CHRYSLER

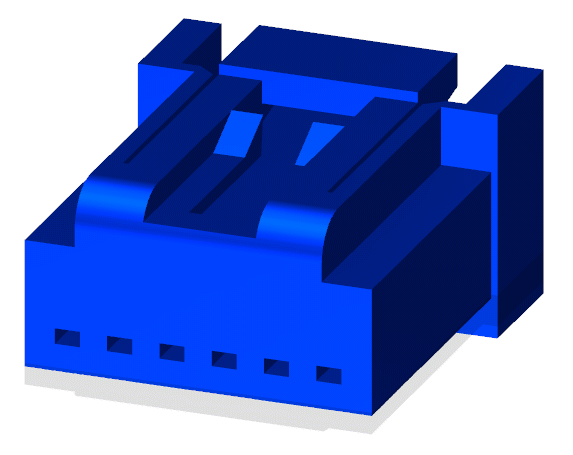

Fig 2: Module-Keyless Ignition Node Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Keyless Ignition Node Wire Insertion View (Standard)

Courtesy of CHRYSLER

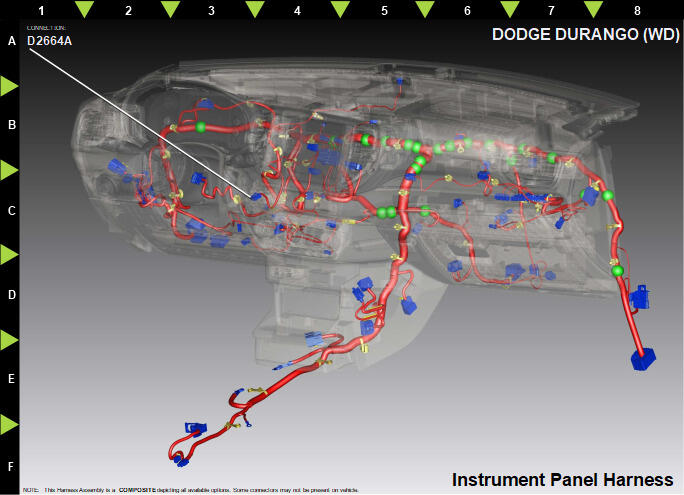

Fig 4: Module-Keyless Ignition Node Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	Z911	BK	0.50	GROUND	N/A
4	G201	VT/BU	0.50	IGNITION SWITCH POSITION SIGNAL	N/A
5	D122	WH/GN	0.50	SECURITY K LINE COMMUNICATION	N/A
6	A910	RD	0.50	FUSED B(+)	N/A
