Module-Occupant Restraint Controller C2 (Standard) Connector End View (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 2098966-1_2098972-1_2098971-1

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: 68602021AA

Cavity Count: 54

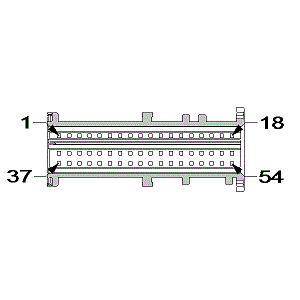

Fig 1: Module-Occupant Restraint Controller C2 Connector End View (Standard)

Courtesy of CHRYSLER

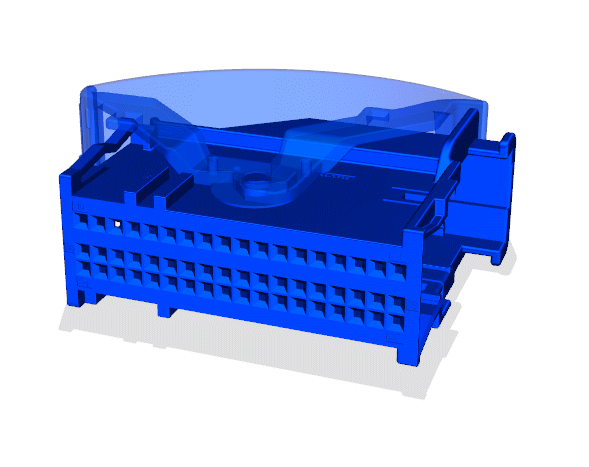

Fig 2: Module-Occupant Restraint Controller C2 Isometric View (Standard)

Courtesy of CHRYSLER

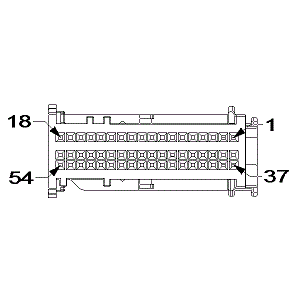

Fig 3: Module-Occupant Restraint Controller C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

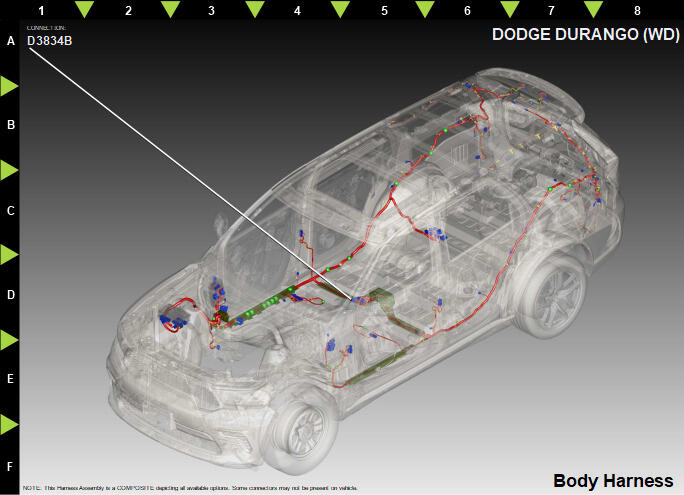

Fig 4: Module-Occupant Restraint Controller C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R7	GN/GY	0.50	LEFT SEAT THORAX SQUIB 1 LINE 1	N/A
2	R5	BU/VT	0.50	LEFT SEAT THORAX SQUIB 1 LINE 2	N/A
3	R6	VT/BU	0.50	RIGHT SEAT THORAX SQUIB 1 LINE 2	N/A
4	R8	GY/GN	0.50	RIGHT SEAT THORAX SQUIB 1 LINE 1	N/A
5	R505	GN/DG	0.50	DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1	N/A
6	R503	GN/YE	0.50	DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2	N/A
7	R504	BU/YE	0.50	PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2	N/A
8	R506	BU/DG	0.50	PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	R13	GN/BG	0.50	LEFT SIDE IMPACT SENSOR 1 SIGNAL	N/A
20	R15	GN/BN	0.50	LEFT SIDE IMPACT SENSOR 1 GROUND	N/A
21	R16	BN/GN	0.50	RIGHT SIDE IMPACT SENSOR 1 GROUND	N/A
22	R14	BG/GN	0.50	RIGHT SIDE IMPACT SENSOR 1 SIGNAL	N/A
23	N0	NA	0	NO CONNECT	N/A
24	N0	NA	0	NO CONNECT	N/A
25	N0	NA	0	NO CONNECT	N/A
26	N0	NA	0	NO CONNECT	N/A
27	N0	NA	0	NO CONNECT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	R4	GY/BU	0.50	RIGHT CURTAIN SQUIB 1 LINE 1	N/A
32	R2	DB/VT	0.50	RIGHT CURTAIN SQUIB 1 LINE 2	N/A
33	R1	GY/WH	0.50	LEFT CURTAIN SQUIB 1 LINE 2	N/A
34	R3	DG/OG	0.50	LEFT CURTAIN SQUIB 1 LINE 1	N/A
35	N0	NA	0	NO CONNECT	N/A
36	N0	NA	0	NO CONNECT	N/A
37	R263	BU/VT	0.50	DRIVER SEAT POSITION SENSOR VOLTAGE	N/A
38	R264	VT/BU	0.50	5 VOLT SUPPLY	N/A
39	R57	GN/GY	0.50	DRIVER SEAT BELT BUCKLE SWITCH SENSE	N/A
40	R58	BU/GY	0.50	PASSENGER SEAT BELT SWITCH SENSE	N/A
41	N0	NA	0	NO CONNECT	N/A
42	N0	NA	0	NO CONNECT	N/A
43	N0	NA	0	NO CONNECT	N/A
44	N0	NA	0	NO CONNECT	N/A
45	R729	GN/BK	0.50	SENSOR RETURN	N/A
46	R730	BU/BG	0.50	PASSENGER SEAT DETECTION RETURN	N/A
47	R17	GN	0.50	LEFT SIDE IMPACT SENSOR 2 SIGNAL	N/A
48	R19	GN/WH	0.50	LEFT SIDE IMPACT SENSOR 2 GROUND	N/A
49	R20	WH/GN	0.50	RIGHT SIDE IMPACT SENSOR 2 GROUND	N/A
50	R18	BU	0.50	RIGHT SIDE IMPACT SENSOR 2 SIGNAL	N/A
51	R130	DB	0.75	LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL	N/A
52	R150	GN/DB	0.75	LEFT SIDE IMPACT PRESSURE SENSOR GROUND	N/A
53	R160	BN	0.75	RIGHT SIDE IMPACT PRESSURE SENSOR GROUND	N/A
54	R140	BG	0.75	RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL	N/A
